Product Description

Dental Intraoral PSP Imaging Plates Size 0 1 2 for Air Techniques Type

Phosphor Imaging Plates are a digital imaging system that reads the x-ray on a phosphor imaging plate and sends the image to your computer. These plates are as thin as a business card and are wireless.
These plates feature rich images of a diagnostic quality that are available in seconds and operate in normal room lighting-eliminating the need for a dark room.

● Maximizing product value: up to 2000 times for every piece of imaging plate

● Thickness at 0.1 mm & 270 degree bend

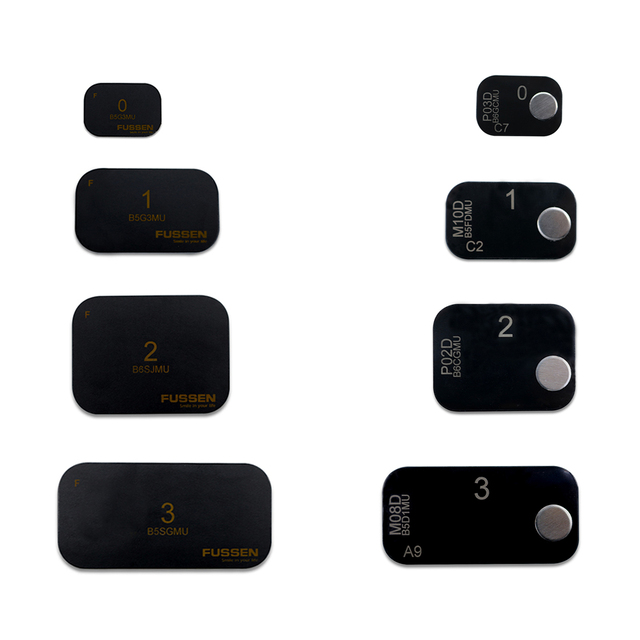

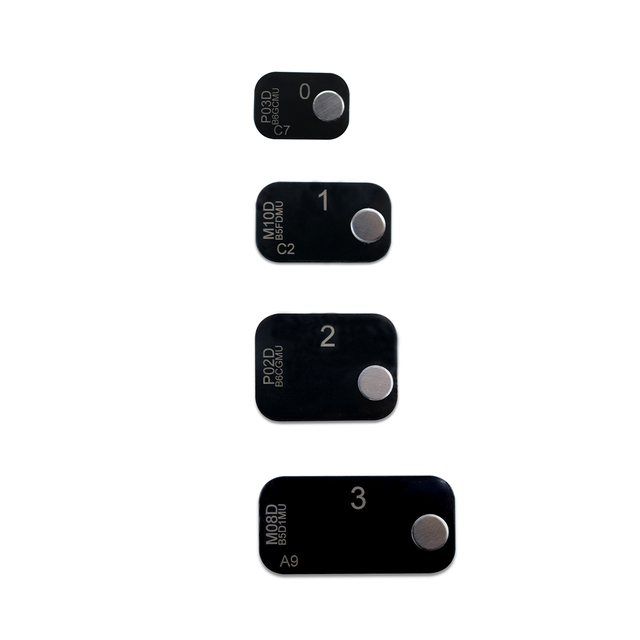

● 3 sizes optional 0# 1# 2#

● Rich images with diagnostic quality.
● Operate in normal room lighting.

Current location：

Dental Digital X-Ray Phosphor IP Image Board General Use 2# Flexible Imaging Plate for Intraoral Scanner

Type	Size	Use
0#	31mm x 22mm	General use
1#	40mm x 24mm	General use
2#	41mm x 31mm	General use

Instructions: 1. The Phosphor plate is composed of phosphorescent layer, plastic base layer, protective film, and specification film. 2. Please use a barrier envelope before use. In order to prolong the life, do not touch the phosphorescent surface with your hands or any equipment, and do not press hard. If you use a holder to shoot, please open the clip with your hands to allow the phosphor plate to enter and exit freely. 3. Please do not bend the phosphor plate excessively in an instant, which will easily accelerate the aging of the phosphorescent surface, and the surface specification film will wrinkle (the specification film can be torn off and it will not affect the use). Cleaning method: Please use an alcohol-based detergent to gently wipe and dry with a lint-free cloth. If necessary, clean it every month, or if the phosphorescent surface looks foreign or excessively dry, it needs to be wiped. Do not touch it with water. And any organic solvents. Transportation, storage and use: 1. Transportation and storage conditions, temperature: -20~60°C. humidity: 15~80%. 2. Operating conditions, temperature: 15 to 30°C, humidity: 15 to 75%.
