MDTHYQ1_0581
MDT
MDTHYQ1_0581
FEATURES:

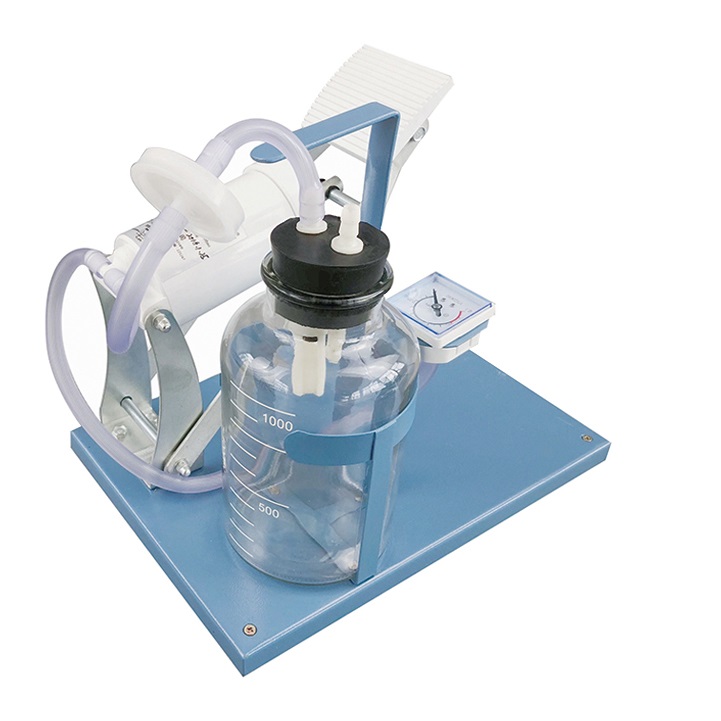

1、The foot pedal suction device consists of a bottom plate,a foot pedal negative pressure pump,a negative pressure indicator, and a collection container component.
2、Foot-pedal suction device can be used for emergency power failure in power-free areas and general areas.
3、This machine has safety device of overflow protector, safe and reliable.
4、The suction device has the characteristics of small volume, light weight, no power supply,easy to carry and safe and reliable to use.
5、The product meets the relevant requirements of ISO10079-2.
TECHNIQUE:
1、The negative pressure generated within 10s is at least 0.04MPa(300mmHg), and the ultimate negative pressure value is no less than 0.08MPa(600mmHg).
2、The number of pedals that reach the ultimate negative pressure value shall not be more than 12 times,and the pedal force shall not be greater than 245N.
3、The flow rate of normal foot pedal attraction is no less than 200mL drawn out within 10s.
4、The peak value of free flow reaches at least 20L/min.
5、Collecting container capacity: 1000ml.
6、Overall dimensions: 34cm×22cm×26.5cm.
7、Weight: 4kg.
8、Work environment:temperature:+5℃～+35℃,relative humidity:≤80%(25℃),atmospheric pressure:86KPa～106KPa.
