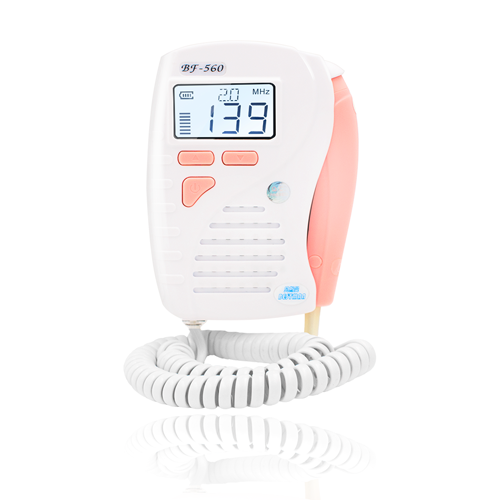

Fetal Doppler

Feature:

l  White backlight LCD can display FHR for darkness use: show the probe working frequency, battery capacity, Doppler signal and alarm indicator; user friendly interface makes easy operation;

l  Output jack can be connected to instruments. ( headset )

l  Sound amplified and recorded function;

l  Clear sound with a high quality loudspeaker;

l  2.0MHz probe is standard probe, can be changed into 3.0MHz, 5.0MHz, 8.0MHz very easily;

l  1.5V batteries be chosen by alkaline battery or rechargeable batteries.

Specification:

l  Executive Standard:EN61266:1995

l  Ultrasonic frequency:2.0 MHz(Standard) 3.0MHz/5.0MHz/8.0MHz(Optional),error: ± 10%

l  Ultrasonic power intensity:≤10mW/cm2

l  Comprehensive Sensitivity: ≥90dB

l  Measurement range: 50bpm–210 bpm Error: ±2bpm

l  Isptp:≤0.1Mpa

l  Doppler Frequency: 0-3KHz

l  Power Consumption:≤1.5W

l  Power off automatically: after 3 minutes

l  Working Mode: Continuous ultrasound Doppler

l  Working temperature: 5-40℃

l  Humidity:< 80％

l  Atmospheric pressure:86-106kPa

l  Power Supply: Size 5 alkaline battery(1.5V x3) (alkaline battery isn't rechargeable)

Certification:

The product approved by CE, Free sale certification. If you need copy of the files, please contact our sales.

Package:

l  Single unit     Dimension: 24cm × 23cm × 12cm   Gross Weight: 1.5kg

l  20 pcs/carton Dimension: 44cm x 36cm x42cm     Gross Weight: 14kg

l  Normative collocation: Main Unit, 2.0MHz Probe, 3.0pieces of 1.5V size 5  alkaline battery, gallus, service manual, maintenance manual and certificate.

l  Optional collocation: 3.0MHz/5.0MHz/8.0MHz probe, size 5 Ni-MH rechargeable battery( 1.2V * 3), charger, earphone, mini small sound box, ultrasound gel.
