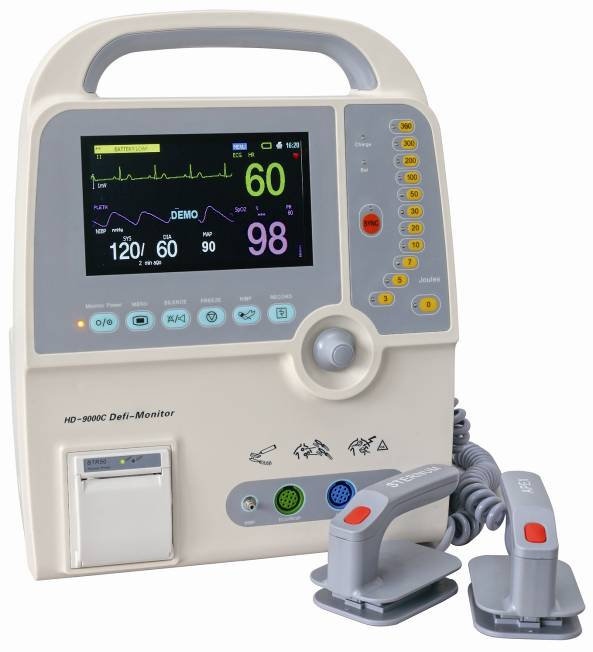

HD-9000C Defi-monitor

Technical specifications

DEFIBRILLATOR.

(1) Defibrillator type   Manual, Synchronized, Asynchronized,

(2) Energy accuracy   ∠+1%

(3)  Energy selection    0, 3, 5, 7, 10, 20, 30, 50, 100, 200, 300, 360 joules (nominal at a resistance of 50)

(4) Charging time      Maximum 10 seconds to 360 Joules

(5)  Standard Adult/Pediatric Paddles  Reusable external adult paddles (pediatric paddles integrated)

.Power requirements.

(a) AC Power supply   100V~240V,50Hz/60 Hz

(b) Vehicle Voltage(Option)             DC 12V

Internal Battery Backup

(1) Battery type   Rechargeable lead-acid battery (12V 2.0Ah  X2)

(2) Charging time     Time-Minimum of 4 hours for full charging

(3) Battery charging     During AC Power Supply operation of the device.

(4) Charging /Low Battery Indication      Red LED

(5) Battery Capacity     100% of the battery will provide 120-min monitoring; and 35 discharges at 360 joules.

Display

-LCD Dimensions 7-inch

-Type   High resolution true-color graphic

-Resolution  480X234

ECG

ECG lead: Ⅰ, Ⅱ, Ⅲ, AVR, AVL, AVF, V1～V6
S-T segment analysis: -2.0～2.0mv
Arrhythmia analysis: yes
Protection: With stand 4000vAc/50Hz voltage in isolation and work against electrosurgical knife and defibrillation

Respiration

Measurement method: Thoracic impedance

NIBP

Working mode: Manual/Automatic/stat(5 minutes)
Method: Automatic oscillation
Cuff type: standard Adult; optional Pediatric/Neonatal

Temperature

Measurement range 20~45℃

Resolution 0.1℃

Pulse Oximetry(spO2)

Display ：spo2 value, pulse histogram, waveform, Pulse

Range： 0~99%for adult, pediatric and neonatal patients

Probe ：standard adult finger clip

optional pediatric Y-type clip and neonatal wrap

Pulse range
Pulse range: 0-255bpm

Standard parameter & configuration

ECG/ RESP/SPO2/TEMP/PR/NIBP/DEFIBRILLATOR

Optional parameter

Recorder, Li-ion battery (11.1V 4Ah  X2)
