MDTHYQ1_01084
MDT
MDTHYQ1_01084

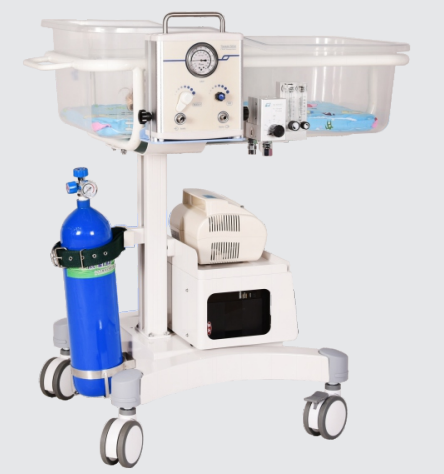

In-hospital transport solution
The Infant In-Hospital Transport Solution is a mobile neonatal monitoring unit. Taking comfort and convenience as the main design concept,
while maintaining a constant temperature, it creates a comfortable transfer environment for transferring infants in the hospital.
▍The main components of the system
>PN-1000A Hospital neonatal transporter Bassinet
>AD3000-TPA Neonatal Pediatric Continuous Positive Airway Pressure Respiratory Support System
>UPS
>Oxygen cylinders and other components.
Main components: It consists of medical bassinet basket, medical neonatal bassinet carrier, neonatal continuous positive airway pressure respiratory support system, air-oxygen mixer (optional), medical air compressor (optional), UPS, oxygen cylinder, etc.
Optional: medical nursing pad, inflatable heating device (body surface heating blanket) and optional equipment.
▍The main technical parameters
■CPAP respiratory support system for neonates and children | |
MAX-P PIP CPAP/PEEP | @0~15LPM ≤6kPa(60cmH2O) @5~15LPM 0.2~5.7kPa(2~57cmH2O) @5~15LPM 0.03~2.3kPa(0.3~23cmH2O) |
FiO2 （Optional） | 21%~100% |
Flow（Optional） | 0 LPM~10LPM |
Hospital neonatal transporter Bassinet | PN-1000A |
■Medical Air Compressor（Optional） | |
Flow | 10L/min |
■UPS | |
Output Capacity | 1500VA/900W |
■ Oxygen Cylinder | |
Capacity | 4L |
▍Application
It is used for nursing, diagnosis and treatment in medical institutions, or when transporting newborns and infants.
The product is suitable for infants and patients weighing less than 20kg to ensure the safe use of the hospital bed.
▍Features
Hospital neonatal transporter Bassinet
- Made of high-quality aluminum material, processed by spraying.
- The bed frame is mainly made of moulded aluminum alloy material, high-strength steel base, bed frame and aluminum profile column, which can be disassembled.
-Fixed baby basin holder, firm, durable, no shaking
- An acrylic baby basin with ventilation holes at the bottom.
-The bottom adopts high-quality medical large casters, which is easy and stable to implement, flexible in steering, and quiet and silent when moving.
Flexible selection
- Inflatable heating device (body surface heating blanket): physical heating outside the body to assist in regulating the body temperature
-Medical Nursing Pad: Fix the patient's position and prevent it from moving.
