MDTHYQ1_01089
MDT
MDTHYQ1_01089

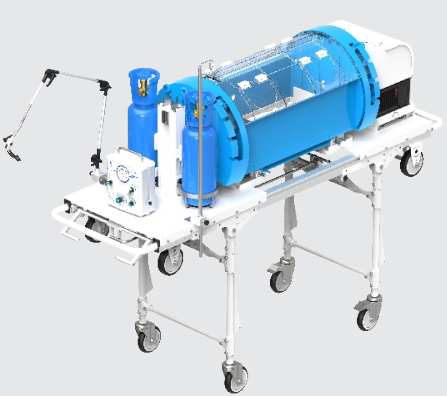

Out-of-hospital transport solution
The Infant Out-of-Hospital Transport Solution is a mobile neonatal monitoring unit. Taking comfort and convenience as the main design concept,
while maintaining a constant temperature, it creates a comfortable transfer environment for out-of-hospital transfer infants.
▍The main components of the system
>PN-1000C1 Medical crib
>PN-1000ZY2 Medical Transfer Vehicle
>AD3000-TPB Neonatal Pediatric Continuous Positive Airway Pressure Respiratory Support System
>UPS
>Oxygen cylinders and other components.
Main components: It consists of medical crib, medical transfer vehicle, AD3000-TPB neonatal continuous positive airway pressure respiratory support system, medical air compressor, UPS, oxygen cylinder, etc.
Optional: medical nursing pad, inflatable heating device (body surface heating blanket) and optional equipment
▍The main technical parameters
■CPAP respiratory support system for neonates and children | |
MAX-P PIP CPAP/PEEP | @0~15LPM ≤6kPa(60cmH2O) @5~15LPM 0.2~5.7kPa(2~57cmH2O) @5~15LPM 0.03~2.3kPa(0.3~23cmH2O) |
FiO2 | 21%~100% |
Flow | 0 LPM~15LPM |
Medical crib Medical Transfer Vehicle | PN-1000C1 PN-1000ZY2 |
■ Medical Air Compressor（Optional） | |
Flow | 10L/min |
■UPS | |
Output Capacity | 1500VA/900W |
■ Oxygen Cylinder | |
Capacity | 4L |
▍Application
It is used for nursing, diagnosis and treatment in medical institutions, or when transporting newborns and infants.
The product is suitable for infants and patients weighing less than 10kg to ensure the safe use of the hospital bed.
▍Features
Medical crib
-With metal-free structure, visible, flip design.
-Visible to ensure that the child can receive related examinations such as magnetic resonance imaging (MRI), CT and X-ray in the environment of this equipment.
-Clamshell visual box, convenient for nursing staff to observe at any time on the way.
Medical Transfer Vehicle
-Designed with rail type, lightweight material
-Applied to various types of ambulances to safely and efficiently get on and off, helping medical staff to carry out transfer work.
-Can place and fix various medical devices and accessories.
-Sturdy and durable, aluminum alloy material, overall light weight.
Flexible selection
- Inflatable heating device (body surface heating blanket): physical heating outside the body to assist in regulating the body temperature
- Air-oxygen mixer, medical air compressor: the oxygen concentration can be adjusted to meet the safe use of oxygen.
-Medical Nursing Pad: Fix the patient's position and prevent it from moving.
