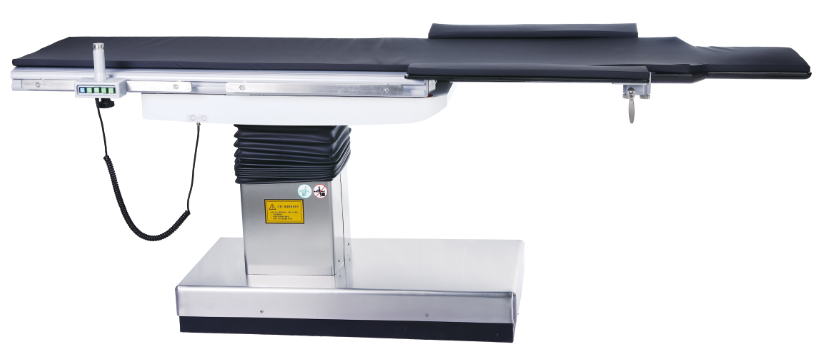

JH-SYCD camera bed is mainly used for general X-ray lying position photography, and can also be used with mobile C-arm. The product adopts advanced electromechanical transmission technology, full carbon fiber integral bed panel, with functions such as lifting, vertical translation, and horizontal translation. When used with X-ray imaging system or C-arm, it can obtain the best imaging effect with accuracy and clarity, and it can satisfy the imaging examination in all directions without moving the patient.
1. The bed surface is designed to move 1800mm to the head and 1100mm to the foot to maximize the openness, no obstructions, and blind spots under the bed to meet the needs of various surgical operations. The whole body X-ray can be performed without moving the patient. Meet the requirements of 3D image acquisition.
2. Bed panel: Made of carbon fiber material, low X-ray absorption coefficient and high-definition perspective imaging effect, greatly reducing the radiation damage of X-rays to patients and staff.
3. The platform lifting, longitudinal translation, lateral translation, and braking are all realized by electric devices, using 24V DC voltage, which is safe and reliable.
4. Using memory foam, it can be re-naturally plasticized according to the patient's body temperature and body shape, and it is detachable.
5. Equipped with a built-in emergency power supply, which can be used in emergency after the network power is cut off.
