MDTHYQ1_0192

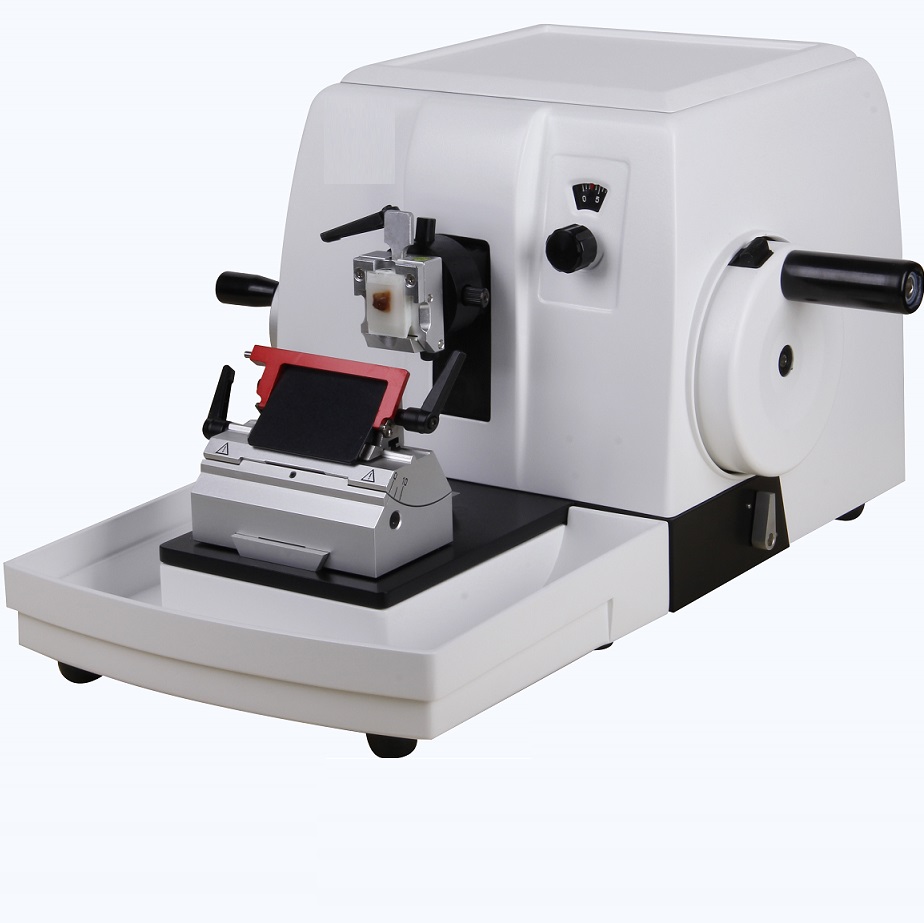

KD-2268
MDTHYQ1_0192
Features:
■Ergonomical conception of devise,no feeling of tire for routine operation
■Good section result whether by use of Standard Steel Knife or Disposable Blade
■Specimen clamp positioned at 8 X/Y precision orientation system
■Handweel system allow the handwheel locked at any position
■Specimen retraction fuction(this fuction can be shut),Cutting and trimming modes
■Course feed handwheel systems,closer to user to protect fatigue-free section
■Exact zero position precise orientation systems,easy to operate
■Red Knife guard to avoid any damage to user,and easy to change disposable blade
■Blade holder can be moved sidewise,no need to move blade
■An integrated storage tray (not supplied with basic instrument) ensures that ancillary tools are on hand at all times
■Large Waste tray,easy to clean and unload
Technical Specifications:
■Section thickness range:0.5~60μm
■Setting value:0.5~2μm increment 0.5μm
2~10μm increment 1μm
10~20μm increment 2μm
20~60μm increment 5μm
■Minumum Setting value:1μm
■Precision Error:±5%
■Maximum Specimen Size:60x50mm
■Trimming Setting Mode:15μm or 35μm
■Specimen Retraction Range: 60μm
■Specimen retraction range of 90μm can be shut off
■Object Feed: 30mm,Vertical Stroke: 70mm
■Specimen Orientation System: 8 X/Y
■Dimension: 570mmx500mmx300mm
■Net Weight: 33kg
