MDTHYQ1_010958
MDT
MDTHYQ1_01098

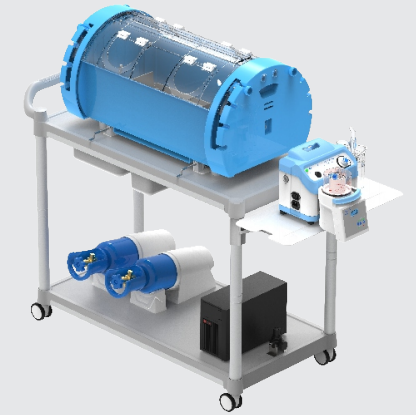

In-hospital solution for transfer system
The Infant In-Hospital Transport Solution is a mobile neonatal monitoring unit. Taking comfort and convenience as the main design concept,
while maintaining a constant temperature, it creates a comfortable transfer environment for transferring infants in the hospital.
▍Main components of the system
>PN-1000C1 Medical Crib
>PN-1000ZY3 Medical Transfer Vehicle
> AD-IA Neonatal Continuous Positive Airway Pressure Respiratory Support System
>Medical Electrothermal Humidifier/Medical Respiratory Humidifier
>UPS
>Oxygen cylinders and other components.
Main components: It consists of medical crib, medical transfer vehicle, AD-IA neonatal continuous positive airway pressure respiratory support system, medical electric heating humidifier/medical respiratory humidifier, UPS, oxygen cylinder, etc.
Optional: medical nursing pad, inflatable heating device (body surface heating blanket) and optional equipment
▍Main technical parameters
■Neonatal CPAP Respiratory Support System | |
Ventilation mode (MODE) CPAP压力 CPAP pressure Working noise | CPAP (BUBBLE CPAP) mode 300Pa~1000Pa(3cmH2O~10cmH2O) ≤55dB（A） |
FiO2 | 21%~100% |
Flow | 0 LPM~10LPM |
Medical Crib Medical Transfer Vehicle Medical Humidifier | PN-1000C1 PN-1000ZY3 PN-2000F/PN-2000FD |
■UPS | |
Output capacity | 1500VA/900W |
■Oxygen cylinder | |
Capacity | 4L |
▍Application
It is used for nursing, diagnosis and treatment in medical institutions, or when transporting newborns and infants.
The product is suitable for infants and patients weighing less than 20kg to ensure the safe use of the hospital bed.
Features
Medical Crib
--With metal-free structure, visible, flip design.
-Visible to ensure that the child can receive related examinations such as magnetic resonance imaging (MRI), CT and X-ray in the environment of this equipment.
-Clamshell visual box, convenient for nursing staff to observe at any time on the way.
Medical Transfer Vehicle
-Designed with aluminum, ABS, PC, PA lightweight materials
-Can place and fix various medical devices and accessories.
- Rugged and lightweight overall.
Flexiable selection
- Inflatable heating device (body surface heating blanket): physical heating outside the body to assist in regulating the body temperature
-Medical Nursing Pad: Fix the patient's position and prev
