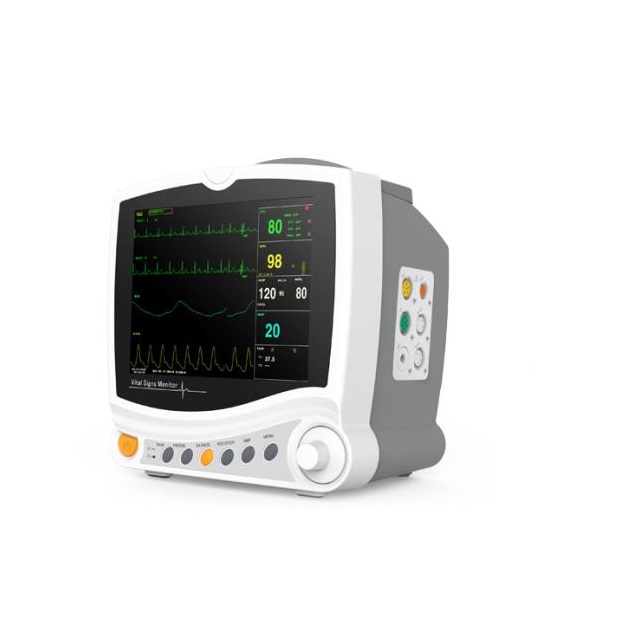

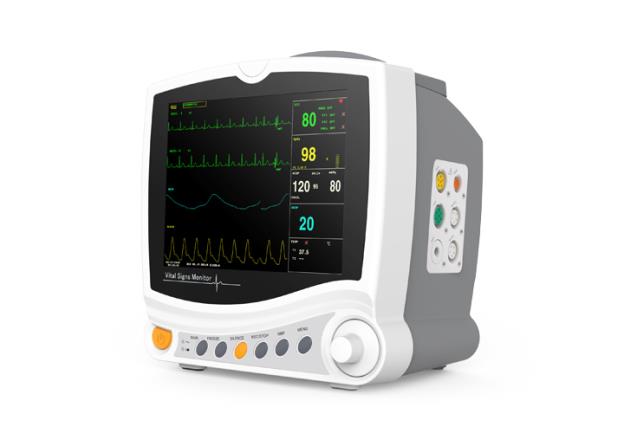

CMS6800 Patient Monitor

                                                                                                                                                                                                                                                                                                                                              ꁆ         ꁇ

Brief Introduction

Introduction

The monitor has abundant functions that can be used for clinical monitoring with adult, pediatric and neonate. Users may select different parameter configuration according to different requirements. The monitor, power supplied by 100-240V~,50/60Hz,  adopts 8'' color TFT LCD displaying real-time date and waveform. It can  synchronously display eight-channel waveform and full monitoring  parameters equipped with an optional external 48mm thermal  recorder. The monitor can be connected to the central monitoring system  via wire or wireless network to form a network monitoring system.

This device can monitor such parameters as ECG, RESP, SpO2,  PR, NIBP and TEMP, etc. It integrates parameter measurement module,  display and recorder in one device to form a compact and portable  equipment. Its replaceable internal battery brings lot of convenient for  patient moving.

Functions

Standard parameters: ECG, RESP, SpO2, PR, NIBP, dual-channel TEMP

1)                      ECG                        Heart rate(HR)

                                               ECG waveform

                                               Arrhythmia and ST-segment analysis

2)                      RESP                        Respiration rate(RR)

                                               Respiration waveform

3)                      SpO2                        Oxygen saturation(SpO2)

                                               Plethysmogram(PLETH) waveform

                                               Pulse rate(PR)

                                               Bar graph

4)                      NIBP                        Systolic pressure(SYS), Diastolic pressure(DIA), Mean pressure(MEAN)

5)                      TEMP                        T1, T2, TD

It  has abundant functions, such as audible and visual alarm, trend data  storage and output, NIBP measurement, alarm event marking and drug  concentration calculation, etc.
