MDTDCZ108
MDT
MDTDCZ108

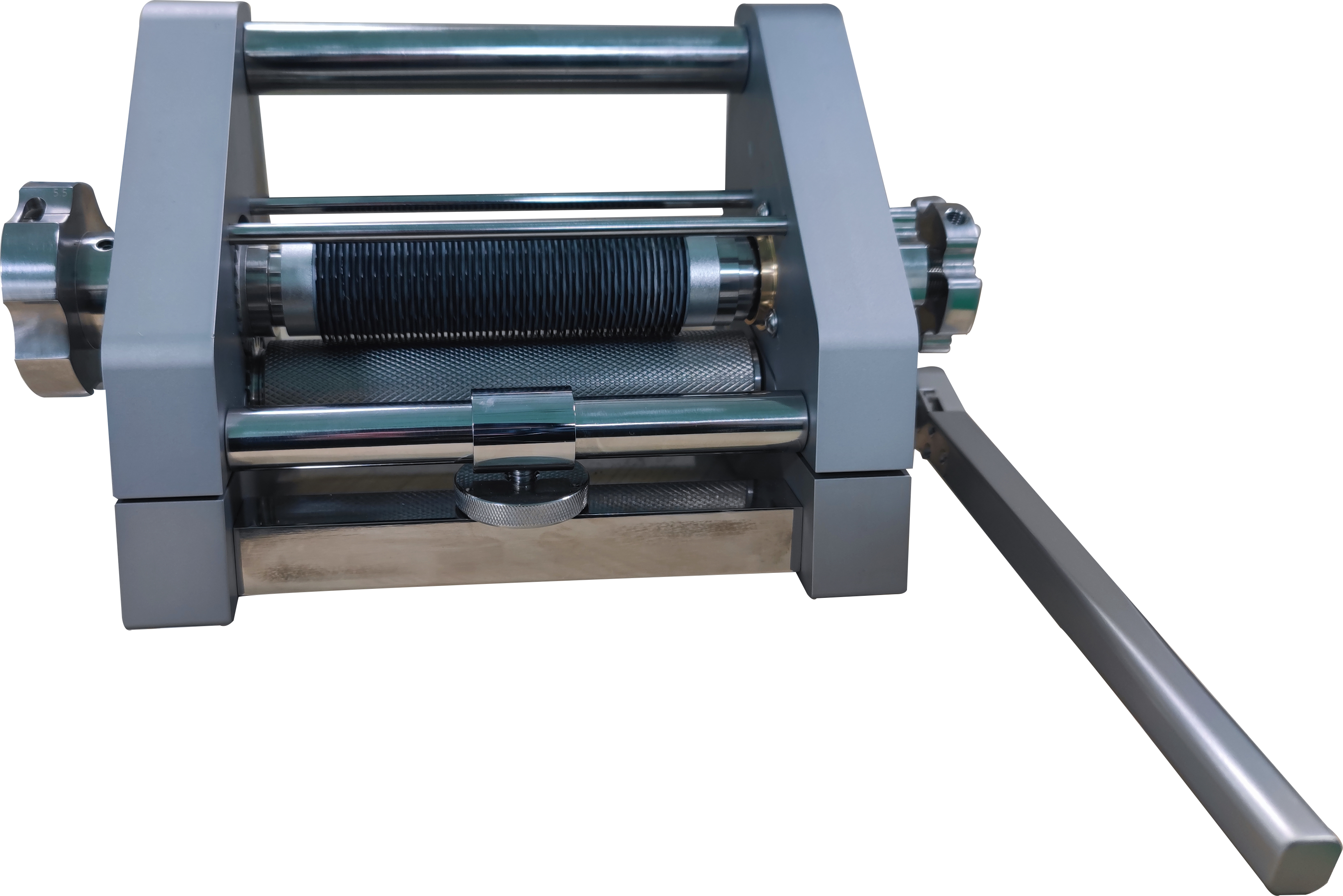

1. Product Name: Skin Graft Mesher
2. Machine Model: MT-7B
3. Machine Function: Make reticular skin graft.
4. Function Specifications: the making ratios of reticular skin graft from 1:1 to 1:6,even larger.
5. Distance between the two hole:2mm.
※6. Function Realization Method: adjust and make different expansion ratio reticular skin by the adjustable expansion roller without changing different expansion rollers or selecting different ratio pattern carriers ,simple operation.
7.Specification of skin graft can be processed:
Max Width: ≥110mm Max Length: Unlimited Max Thickness:Unlimited
8. Operation Method of Machine: Manual(Double direction)
9. Sterilization Method: pre-vacuum or gravity displacement steam sterilization or low temperature plasma sterilization, etc.
10. Comsumables: we suggest skin graft carrier for single use.
11. Machine Material: The whole device and rollers are anti-corrosive, the rollers are sharp and will not be rusty, no need special maintenance.
※12.Expansion Roller Technology: The self-lubricating design of the expansion roller can easily roll the mesh skin without too much force. The expansion roller is made of steel imported from Germany. The blade is sharp, not easy to blunt, not rusty, and does not need special maintenance. Non-die roller design which has longer life. In case of damage, a single blade can be replaced (5-10 pieces can be replaced for free). There is no need to replace the whole roller, and the maintenance cost is very low.
