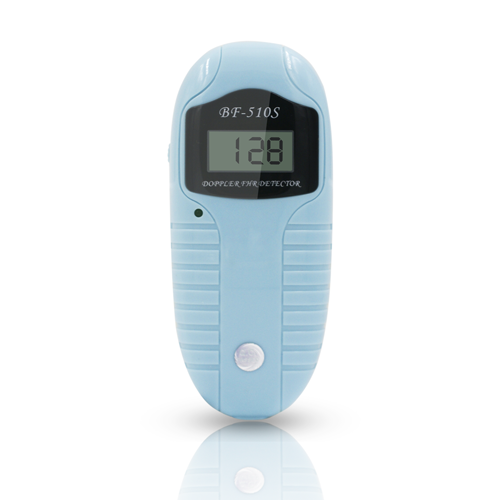

Ultrasound Diagnosis Fetal Doppler BF-510S

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • MDTHYQ1_0951

  • MDT BF-510S

  • MDTHYQ1_0951

Feature:

l  Pocket home-use fetal Doppler mainly applies to detect the fetal heartbeat rate from the twelfth week for pregnant woman at home;

l  Only 90g, the feature is designed according to Ergonomics, integrating the probe and main unit;

l  LCD can display the FHR, and freeze current FHR data on LCD;

l  Built-in dry battery can work intermittent more than 4 hours;

l  Alarm function when FHR is out of the normal range or battery power is in shortage;

l  Collocated with earphone, and can hear the FHR clear and loud.

Specification:

l  Executive Standard: EN61266: 1995

l  Ultrasonic frequency: 2.0MHz±10%

l  Ultrasonic intensity: ≤10mW/cm2

l  Comprehensive Sensitivity: ≥90dB

l  FHR range: 60--210bpm(±2bpm)

l  FHR alarm range: ≤100bpm or  ≥160bpm

l  Isptp: ≤0.1MPa

l  Battery: 9V dry battery (optional for 9VNi-MH rechargeable batteries and charger)

l  Maximum audio output intensity: ≤1W

l  Doppler frequency: 100--3000Hz

l  Static continuous working time: ≥4h

l  Working temperature: 10-40℃

l  Humidity: ≤80%

l  Atmospheric pressure: 86--106kPa

Certification:

The product approved by CE, Free sale certification. If you need copy of the files, please contact our sales.

Package:

l  Single Unit     Dimension: 26cm x 24cm x 12cm     Gross Weight: 1.5kg(Paper carton packing)

l  18 pcs/carton  Dimension: 49cm x 26cm x 33cm    Gross Weight: 8.5kg  (Vacuum plastic packaging)

l  Normative collocation: earphone, gel, operation manual, approval certification, warranty card

FAQ:

The main purpose of Fetal home monitoring is to hear the fetal heartbeat, estimate the frequency of fetal heart beating in one minute, monitor whether the FHR(fetal heartbeat rate) is within the normal range(normal FHR range: 120-160bpm);Advise pregnant woman to hear 5 to 10 minutes when hearing the FHR each time, and draw a form to record the FHR for inspection;This model is not expert medical detector, only used to assist to hear the FHR and frequency of fetal heart during gestation. Please use according to doctor's advice and do not replace the conventional pregnancy test, Any questions concerning pregnant woman, please consult the doctor.
