MDTHYQ1_0945
MDT BV-520
MDTHYQ1_0945
Feature:

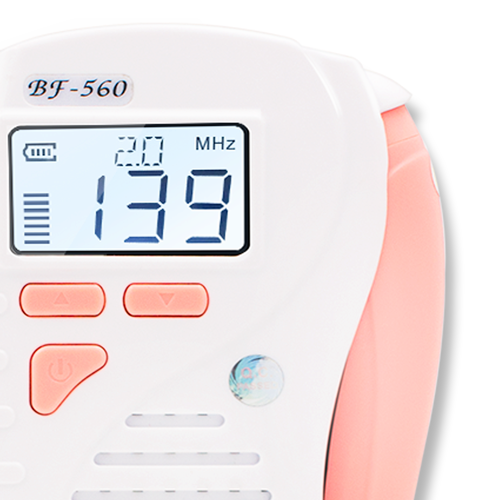

l White backlight LCD can display FHR for darkness use: show the probe working frequency, battery capacity, Doppler signal and alarm indicator; user friendly interface makes easy operation;
l Output jack can be connected to instruments. ( headset )
l Sound amplified and recorded function;
l Clear sound with a high quality loudspeaker;
l 2.0MHz probe is standard probe, can be changed into 3.0MHz, 5.0MHz, 8.0MHz very easily;
l 1.5V batteries be chosen by alkaline battery or rechargeable batteries.
Specification:
l Executive Standard:EN61266:1995
l Ultrasonic frequency:2.0 MHz(Standard) 3.0MHz/5.0MHz/8.0MHz(Optional),error: ± 10%
l Ultrasonic power intensity:≤10mW/cm2
l Comprehensive Sensitivity: ≥90dB
l Measurement range: 50bpm–210 bpm Error: ±2bpm
l Isptp:≤0.1Mpa
l Doppler Frequency: 0-3KHz
l Power Consumption:≤1.5W
l Power off automatically: after 3 minutes
l Working Mode: Continuous ultrasound Doppler
l Working temperature: 5-40℃
l Humidity:< 80%
l Atmospheric pressure:86-106kPa
l Power Supply: Size 5 alkaline battery(1.5V x3) (alkaline battery isn't rechargeable)
Certification:
The product approved by CE, Free sale certification. If you need copy of the files, please contact our sales.
Package:
l Single unit Dimension: 24cm × 23cm × 12cm Gross Weight: 1.5kg
l 20 pcs/carton Dimension: 44cm x 36cm x42cm Gross Weight: 14kg
l Normative collocation: Main Unit, 2.0MHz Probe, 3.0pieces of 1.5V size 5 alkaline battery, gallus, service manual, maintenance manual and certificate.
l Optional collocation: 3.0MHz/5.0MHz/8.0MHz probe, size 5 Ni-MH rechargeable battery( 1.2V * 3), charger, earphone, mini small sound box, ultrasound gel.
