MDTHYQ1_0956

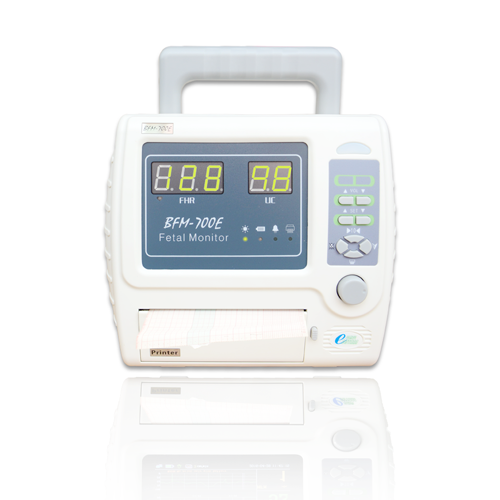

MDT BFM-700M
MDTHYQ1_0956
Feature:
l Display the US and TOCO Data with two groups LED display;
l FHR collection signal for quality indication, alarm indication for abnormal FHR, Fetal movement indication display on the printing paper;
l Coding keyboard adjusts all parameter setting of unit, memory and replay the data in 24 hours(for option);
l Record FHR, UC, FM mark, necessary character interpretation and monitoring time synchronously with 832 thermal linear array printer;
l Curve printing speed, line of thin or thick, signal collection rate can be adjust for the requirements of user, the printing speed can be setup to 1,2,3cm/min;
l Adjust the upper and lower alarming limit, real time, date and other parameter, the set-up data can be saved automatically after powered off;
l The monitoring data can be conveyed to the exterior computer by RS-232.
Specification:
FHR
Probe: 9 crystals, wide wave beam
Working mode: Pulsed Doppler
Ultrasonic frequency: 1.0MHz±10%
Signal processing: signal processing units for special digital signal
FHR range: 50--240bpm
Alarm range: Up: 55--240bpm Low: 50--235bpm
Printing resolution: 27bpm/cm
The highest frequency output: ≤5W
TOCO
Display range: 0--99units ((nonlinear error ≤±10%)
Printing resolution: 40units/cm
Display: display US and TOCO data with two group LED display
Battery: 16.8V/1800mA NI-MH rechargeable batteries group
Time of continue working in static condition: ≥2 hours
Power supply: AV 100--240V 50Hz/60Hz DC 24V±1V
Consume power: ≤50W
Working Temperature: 10--40°C
Humidity: ≤80%
Atmospheric pressure: 86--106kPa
Certification:
The product approved by CE, Free sale certification. If you need copy of the files, please contact our sales.
Package:
l Packing size of suitcase for one unit: 49cm x 25cm x 32cm Gross weight: 10.5kg
l Packing size of carton for one unit: 49cm x 25cm x 32cm Gross weight: 8kg
l Normative collocation: 1.0MHz probe, TOCO probe, remote Marker, switch power, cable, 250ml gel, operation manual, warranty card, approval certification, 2pcs printing paper.
