MDTHYQ1_0955

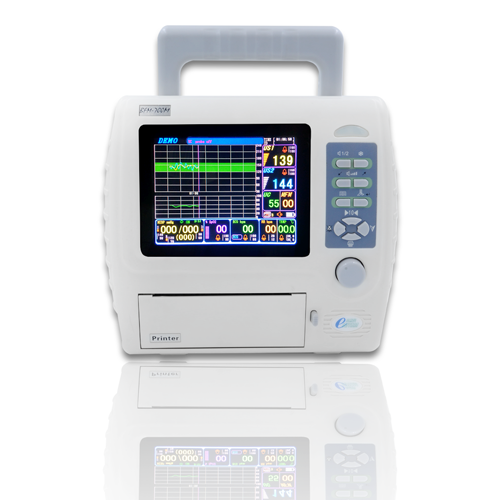

MDT BFM-700M
MDTHYQ1_0955
Feature:
l 5.7 inches TFT LCD displays 2 x US and 1x UC data, mother's NIBP, TEMP, RR, SpO2, and ECG main parameters and monitoring trace curve etc.;
l FHR collects signal indication, alarm indication for abnormal FHR, fetal movement indication, and can freeze monitoring status;
l Can set the time limit (0-99 minutes), and automatically enter dormant state if no signal input;
l Store monitoring data for 24 hours, with replay function;
l Coding keyboard adjusts all parameters setting of the unit, convenient to use;
l Adopt 832 thermal linear array printer, store the data and print rapidly; and printing width is 112mm;
l The printer parameters can be adjusted as users’ need, including printing paper speed, trace line thickness, signal sampling rate, upper and lower alarming limit, real time, and date;
l Set-up data and parameters can be automatically saved after power off;
l The monitoring data can be conveyed to exterior computer through RS-232 or USB port;
l Trolley (adjustable) for option, convenient to move and operate.
Specification:
l US
Transducer 9 crystals, wide wave beam
Working mode: Pulsed ultrasound Doppler
Ultrasonic frequency: 1.0MHz±10%
Measuring range: 50-240 BPM
Alarm range: Up: 55-240 BPM Adjustable continuously within range
Low: 50-235BPM Adjustable continuously within range
l TOCO
Display range: 0-100units (non-linear error: ≤±10%)
l PC PORT
Edition USB 1.1 or USB 2.0; RS-232
l THERMAL RECORDER
Paper width: 112 ± 2mm effective record width: 105 ± 2mm; Paper length: 15m
Recorder density: US: 27 BPM/ CM; UC: 40 BPM / CM
Printing speed (adjustable): 1 cm/min, 2 cm/min, 3 cm/min
l POWER and BATTERY
Battery: 16.8V Ni-MH rechargeable batteries group; AC 220 /110 V ; Consume power: ≤ 60 W
Continuous working time in static condition: ≥ 1 hours
l ECG and HR
Measuring range: 30 BPM -350 BPM
Cardiac electric noise level: ≤ 30 μV
Cardiac electric frequency response:
Filtering mode: 1-25 MHz
Non-filtering mode: 0.05-100 MHz
Cardiac electric Input loop current: ≤ 0.1 μA
l NIBP
Measuring range:
a) SBP: (8.034.0) kPa or (60255) mmHg
b) DBP: (4.026.0) kPa or (30195) mmHg
c) MAP: (5.328.7) kPa or (40215) mmHg
Automatic measuring interval: 3 min-99 min adjustable continuously within range
interval error: ≤ ±10 s
l RR
Measuring range: 0 BPM-100 BPM
l TEMP
Channels: 1
TEMP probe: surface probe 1pcs
Measuring range: 28-45
Response time: ≤30s
l SpO2
Measuring range: 0-99%
l PR
Measuring range: 30-250 BPM
ENVIROANMENT REQUIREMENT
Working Temperature: +5 -40 Humidity: ≤80% Atmospheric pressure: 86 kPa106 kPa
Certification:
The product approved by CE, Free sale certification. If you need copy of the files, please contact our sales.
Package:
l Single Unit Suitcase Package Dimension: 55cm x 26cm x 36cm Gross weight: 10.5kg
l Single Unit Paper carton Package Dimension: 55cm x 26cm x 36cm Gross weight: 8kg
l Normal collocation: 2 x US probe, 1 pcs TOCO probe, 1 pcs RS-232 serial port line, 1 pcs probe bandage, 1 pcs SpO2 probe, 1 pcs TEMP probe, 1 pcs electrode probe, 1 pcs power cable, 1 pcs power switch, 1 pcs BP cuff, event marker, 2 pcs printing paper, 250ml gel, , warranty card, operation manual, service manual.
