MDTHYQ1_01582
MDT-sg
MDTHYQ1_01582

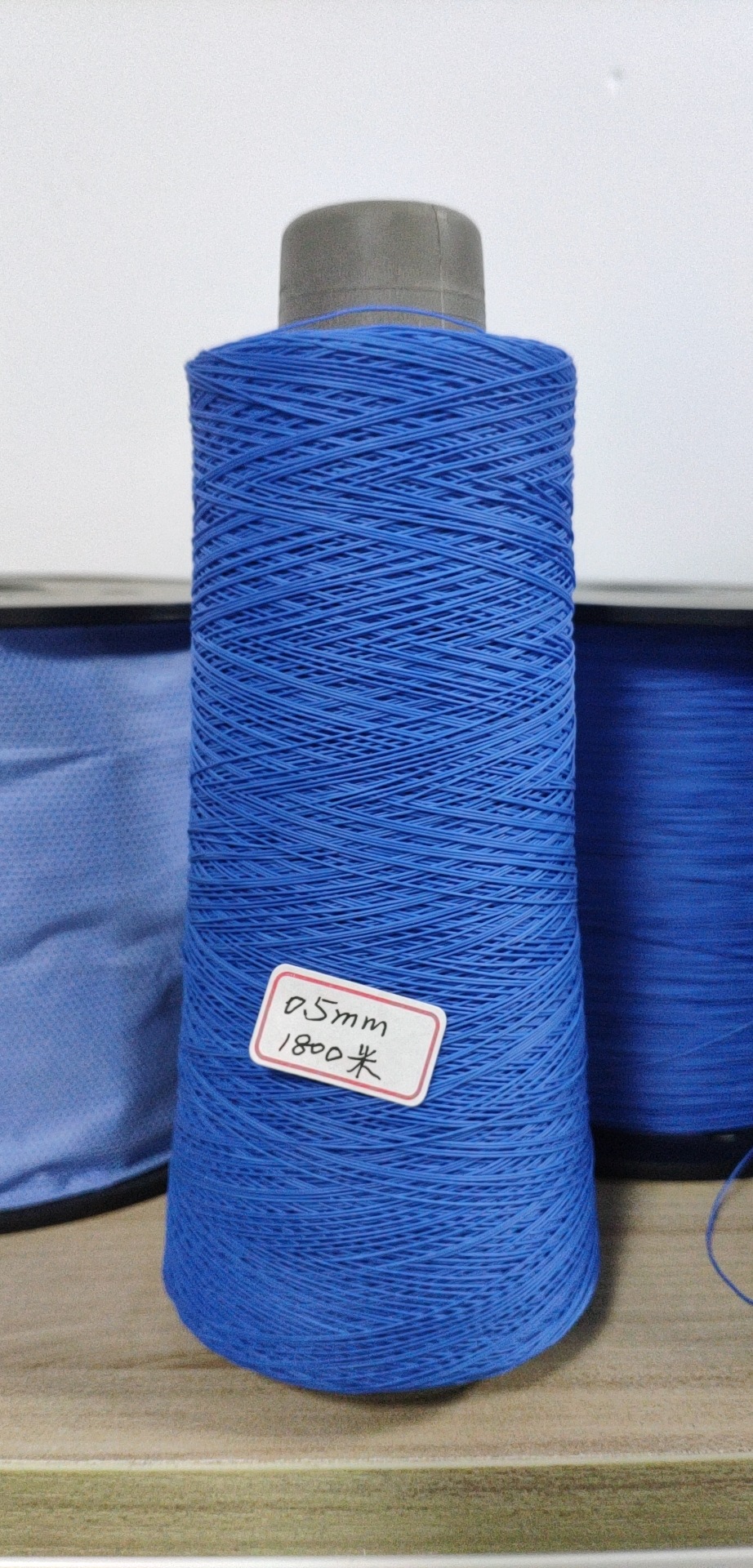

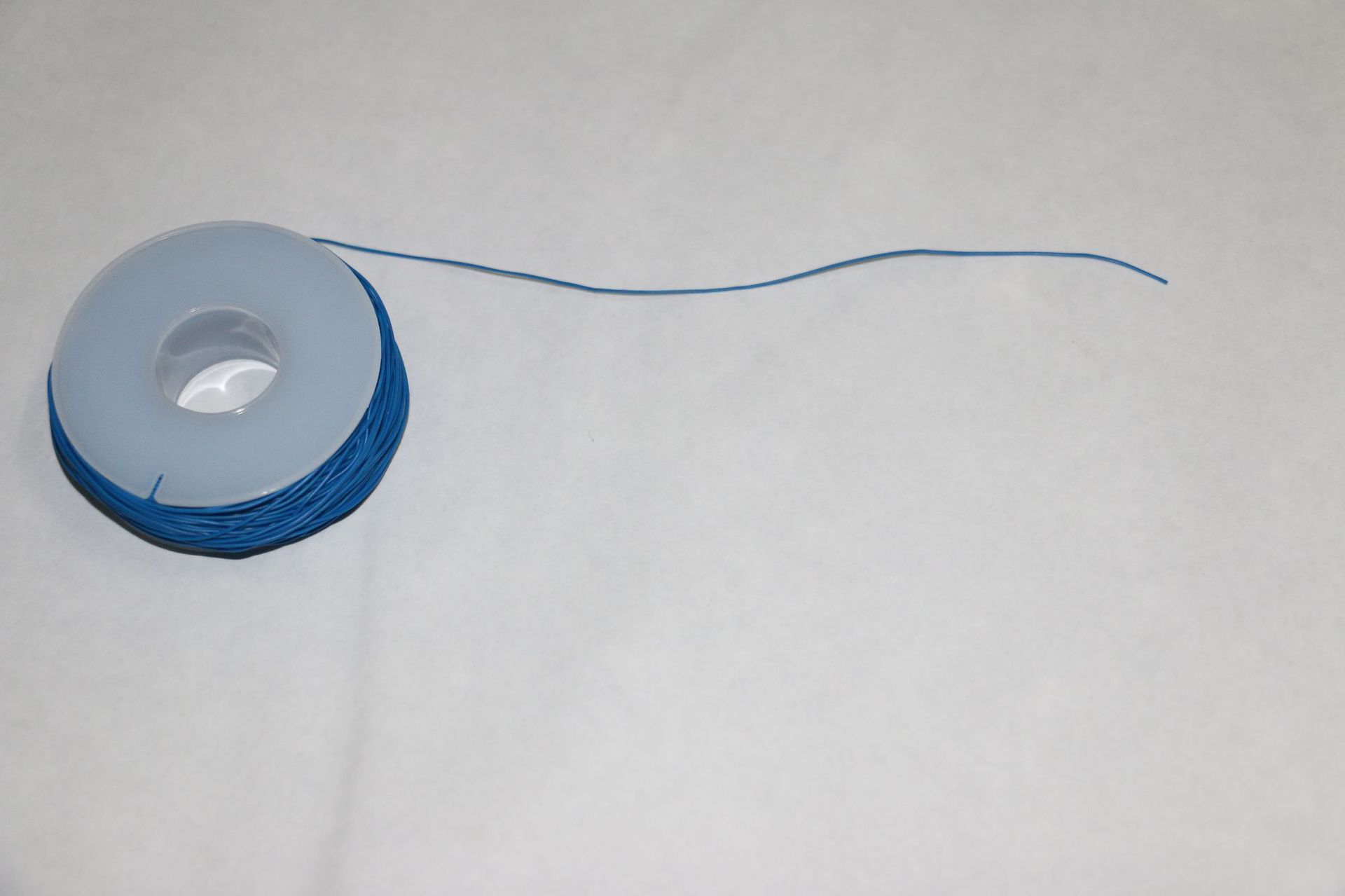

Barium wire with core, injection X-ray tracing line, sandwich X-ray, X-ray tracing line
The medical X-ray tracking line uses the principle that barium sulfate is not penetrated by X-rays, uses barium sulfate as a filler for PVC plastics, adds medical-grade plastic additives, and is formed by stirring, sticking, extrusion granulation, and then extrusion. The core wire is made of high-temperature and anti-scalding high-strength polyester yarn after injection molding, which greatly improves the tensile force, and can be used for gauze weaving, non-woven fabric ironing, injection tube extrusion, and a variety of other materials or products that require development tracking.

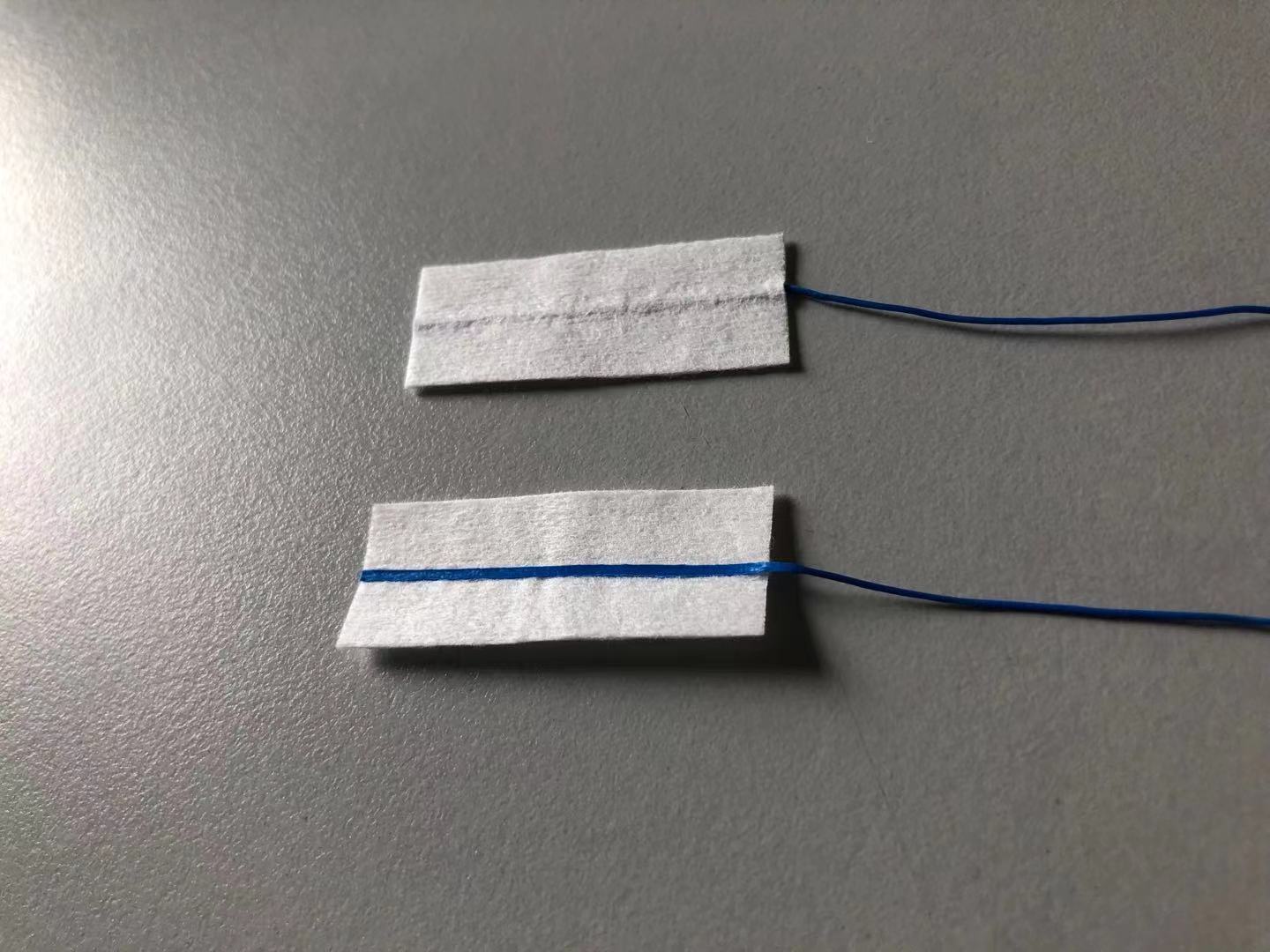

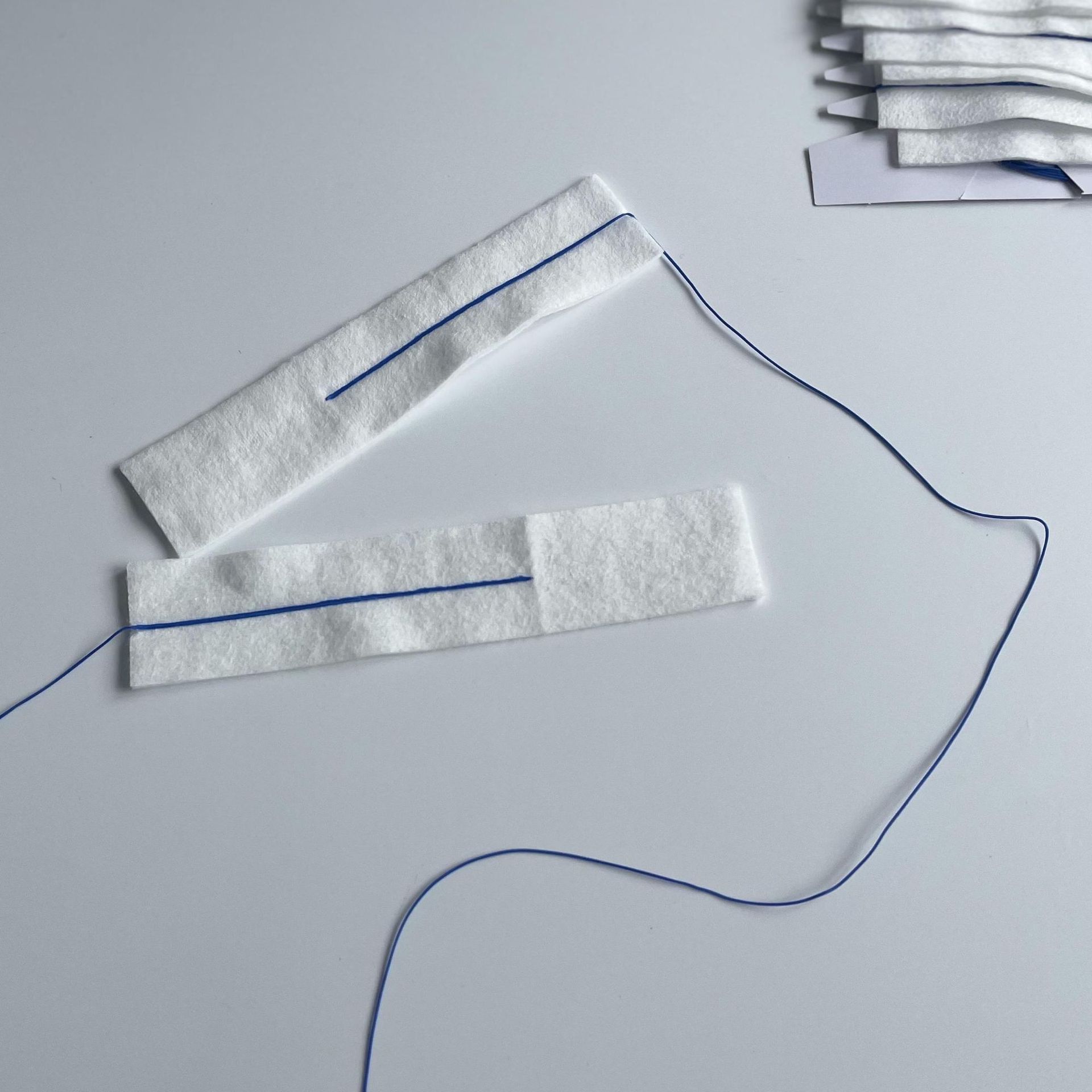

We use surgical gauze sheets, gauze balls, and brain cotton pads containing X-ray tracking lines manufactured by our company to prevent accidental residues in the body during surgery.
Specification:
Diameter mm m/kg Single roll weight
0.4 3600 3kg
0.5 2500-3000 3kg
0.55 2300-2700 3kg
0.6 1500-1800 3kg
0.7 1250-1400 3kg
Note: Special specifications to meet MOQ can be produced according to customer requirements.
Color:
Blue (can be produced according to customer requirements)
Appearance and senses:
Appearance: bright color, smooth surface, no stains and impurities.
Organoleptics: should be soft, uniform in thickness (thickness), no abnormal odor.
Physical properties:
The X-ray tracking line of the injection core type has a tensile length of ≤5%, a retraction length of ≥90%, no hair, no fading, and low elongation.
Fading test: soaked in boiling water for 15 minutes, no fading phenomenon.
Aging test: the core wire is baked at 240 °C for 48 hours, no deformation, no brittle cracking, stable performance; The core wire is not brittle in the environment of -195 °C, and the performance is stable.
Barium content: the amount can be customized according to customer requirements, under normal circumstances, ≥ 60%.
Usage scenarios: can be knitted, ultrasonic ironing.
Biological properties:
Cytotoxicity test, biocompatibility test, hemolysis test, intradermal stimulation test and acute toxicity test all meet the requirements of GB/T16886.1-2001.
SGS test reports show compliance with EU limit values for substances of very high concern.
Barium wire with core, injection X-ray tracing line, sandwich X-ray, X-ray tracing line
The medical X-ray tracking line uses the principle that barium sulfate is not penetrated by X-rays, uses barium sulfate as a filler for PVC plastics, adds medical-grade plastic additives, and is formed by stirring, sticking, extrusion granulation, and then extrusion. The core wire is made of high-temperature and anti-scalding high-strength polyester yarn after injection molding, which greatly improves the tensile force, and can be used for gauze weaving, non-woven fabric ironing, injection tube extrusion, and a variety of other materials or products that require development tracking.
We use surgical gauze sheets, gauze balls, and brain cotton pads containing X-ray tracking lines manufactured by our company to prevent accidental residues in the body during surgery.
Specification:
Diameter mm m/kg Single roll weight
0.4 3600 3kg
0.5 2500-3000 3kg
0.55 2300-2700 3kg
0.6 1500-1800 3kg
0.7 1250-1400 3kg
Note: Special specifications to meet MOQ can be produced according to customer requirements.
Color:
Blue (can be produced according to customer requirements)
Appearance and senses:
Appearance: bright color, smooth surface, no stains and impurities.
Organoleptics: should be soft, uniform in thickness (thickness), no abnormal odor.
Physical properties:
The X-ray tracking line of the injection core type has a tensile length of ≤5%, a retraction length of ≥90%, no hair, no fading, and low elongation.
Fading test: soaked in boiling water for 15 minutes, no fading phenomenon.
Aging test: the core wire is baked at 240 °C for 48 hours, no deformation, no brittle cracking, stable performance; The core wire is not brittle in the environment of -195 °C, and the performance is stable.
Barium content: the amount can be customized according to customer requirements, under normal circumstances, ≥ 60%.
Usage scenarios: can be knitted, ultrasonic ironing.
Biological properties:
Cytotoxicity test, biocompatibility test, hemolysis test, intradermal stimulation test and acute toxicity test all meet the requirements of GB/T16886.1-2001.
SGS test reports show compliance with EU limit values for substances of very high concern.
