MDTHYQ1_01440
MDT-HY
MDTHYQ1_01440
Specification
specification | 1# | 2# | 3# | 4# | 5# | 6# | 7# | 8# |
volume （ml） | 95ml | 66ml | 66ml | 45ml | 45ml | 25ml | 8ml | 5ml |
upper cover form | Straight type | Straight type | Elbow type | Straight type | Elbow type | /Straight type | Straight type | Straight type |
Structure performance

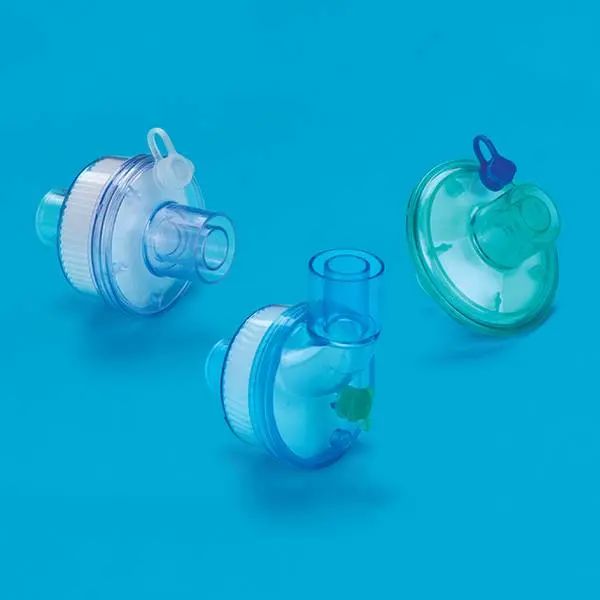

Disposable breathing filter (commonly known as: artificial nose), it consists of the upper cover, the lower cover, filter membrane, protective cap composition. Among them: the upper cover of the respiratory filter, the lower cover is made of ABS material or polypropylene material, the filter membrane is made of polypropylene composite material. The filter rate of the product is not less than 90%. 0.5μm particles in the air.
Direction for use
1. Open the package, take out the product, according to the patient to select the appropriate specifications of the model of the respiratory filter.
2. According to the patient's anesthesia or breathing routine operation mode, the two port connector of the breathing filter is connected with the breathing pipe or instrument.
3. Check the pipeline interface is strong, should prevent the accidental fall off in use, can be used when necessary tape fixed.
4. The general use of breathing filter time is not more than 48 hours, it is best to replace every 24 hours once, not repeated use.
Specification
specification | 1# | 2# | 3# | 4# | 5# | 6# | 7# | 8# |
volume （ml） | 95ml | 66ml | 66ml | 45ml | 45ml | 25ml | 8ml | 5ml |
upper cover form | Straight type | Straight type | Elbow type | Straight type | Elbow type | /Straight type | Straight type | Straight type |
Structure performance
Disposable breathing filter (commonly known as: artificial nose), it consists of the upper cover, the lower cover, filter membrane, protective cap composition. Among them: the upper cover of the respiratory filter, the lower cover is made of ABS material or polypropylene material, the filter membrane is made of polypropylene composite material. The filter rate of the product is not less than 90%. 0.5μm particles in the air.
Direction for use
1. Open the package, take out the product, according to the patient to select the appropriate specifications of the model of the respiratory filter.
2. According to the patient's anesthesia or breathing routine operation mode, the two port connector of the breathing filter is connected with the breathing pipe or instrument.
3. Check the pipeline interface is strong, should prevent the accidental fall off in use, can be used when necessary tape fixed.
4. The general use of breathing filter time is not more than 48 hours, it is best to replace every 24 hours once, not repeated use.
