| Quantity: | |
|---|---|
MDTWJ_0070
MDTPA189537YT71542
MDTWJ_0070
model | YTZF 700 / 500 surgical shadowless lamp |
illuminance (Lux) | 40000-160000 |
colour temperature (K) | 3500-6000 |
spot diameter (mm) | 80-200㎜ |
Lighting Depth (mm) | ≥1200㎜ |
brightness control | Twenty-grade gear for continuous dimming |
color rendering index | ≥97% |
irradiance | 6w/m² |
UV auxiliary illumination | 0.3w/m² |
source | AC100-240V 50/60HZ |
interiorinput power (W) | 400VA |
Bulb power (W) | 24V 150W |
Main light and secondary light will switch automatically | 0.1 Seconds |
Six dimensional joints | 360° |
mounting height | 2500-3000 |
★ Enterprise through ISO13485; ISO9001; EU CE; national electrical safety and electromagnetic compatibility dual certification; AAA credit enterprise; high-tech enterprise.
explain:

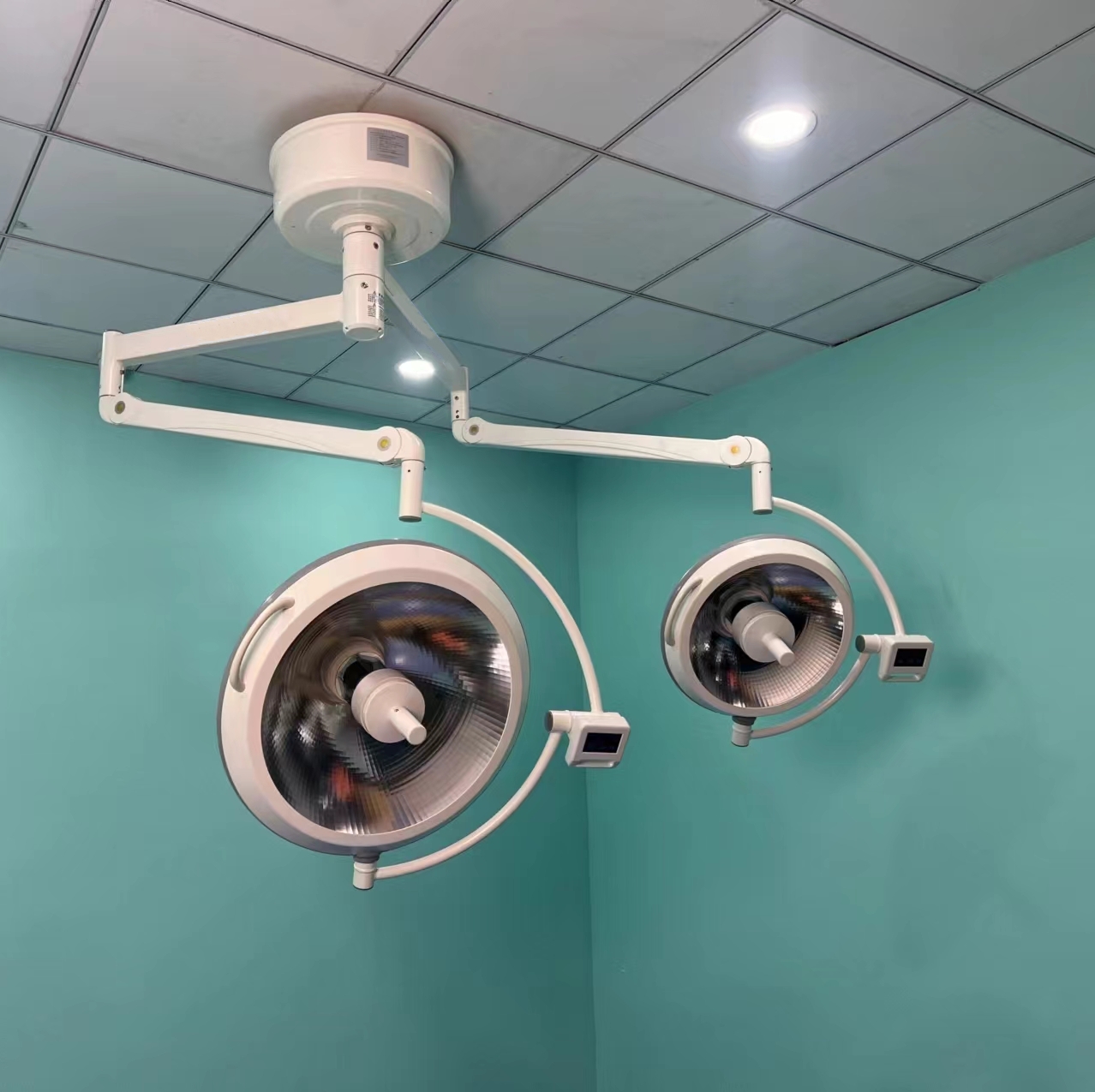

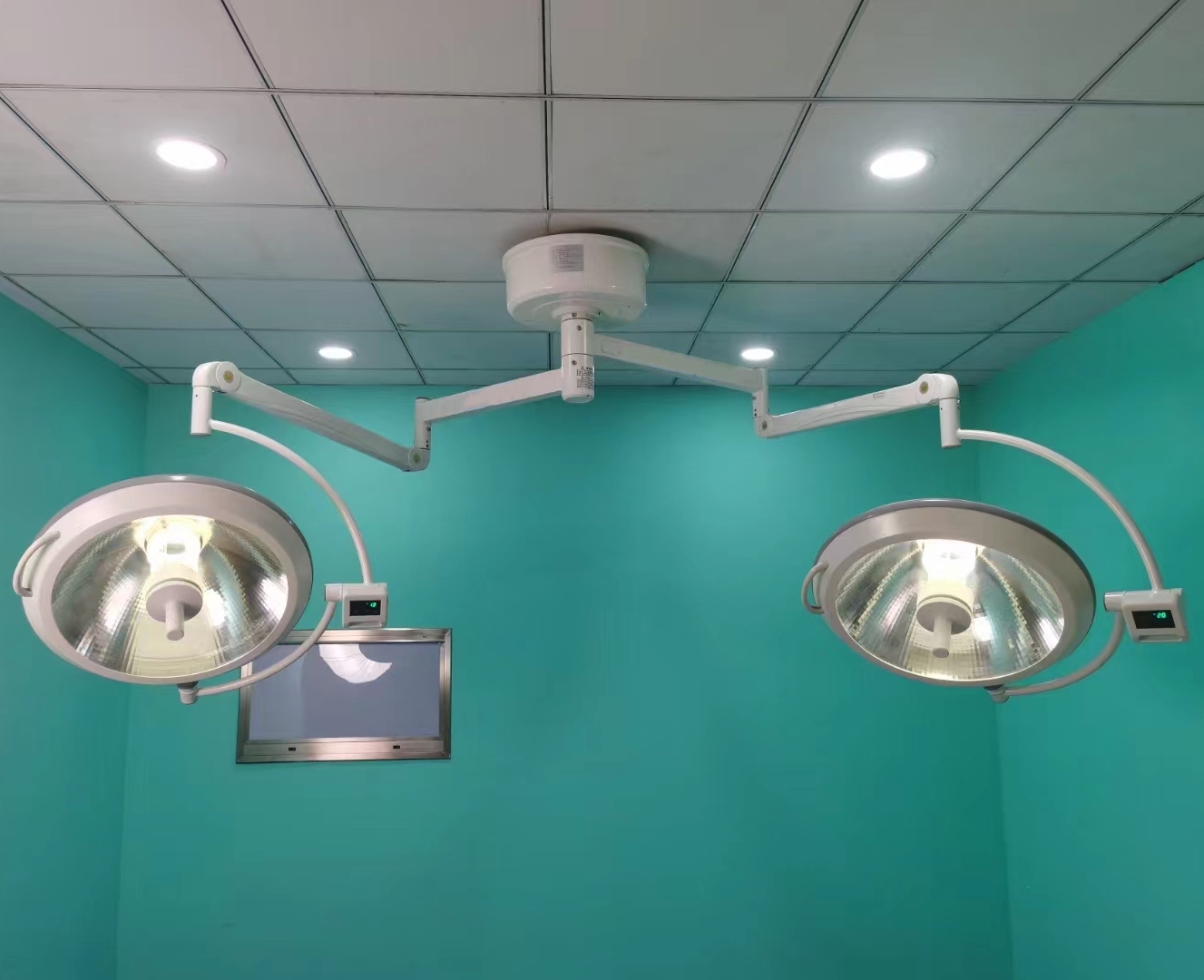

1、 Surgical shadowless lamp is widely used for lighting needs in various surgical occasions, and it is the ideal lighting equipment for modern operating rooms.
2、 The optical system created by CAD / CAM technology, the lighting depth reaches 1200mm, and the color temperature compensation technology is used to improve the color reduction, which is more suitable for the lighting of large and complex operations such as brain surgery and thoracic surgery.
3、 Microcomputer digital control, with ten-segment brightness selection, and illumination memory function and wide voltage working characteristics, the mains AC180V-250V range of stable work, strong anti-interference ability.
4、The fully enclosed streamlined lamp body design fully meets the needs of the current operating room disinfection and high standard laminar flow.
5、 The PC (bulletproof plastic) injection molding produced by GE company makes the light softer and the safety more reliable.、
6、 The system is exquisite and convenient to replace light bulbs and porcelain seats. The unloading handle coat can be sterilized at high temperature (180°C).
7、 With the backup bulb automatic switching function, when the main light burns out, the secondary light will automatically light up within 0.1 seconds. The handle panel has tests of the main and secondary lights and their circuits.
8、 The soft start device is set to effectively prolong the service life of the bulb, using the imported long life halogen tungsten lamp bubble, the bulb life reaches more than 1000 hours.
9、 The key components are all national standard brand products, stable and reliable operation, flame retardant materials temperature resistance and safety, in line with IEC standards.
10、 It can be equipped with light import balance arm suspension system, six groups of universal joints linkage, light movement, stable and stable, 360-degree comprehensive design, can meet the needs of different heights and angles in the operation.

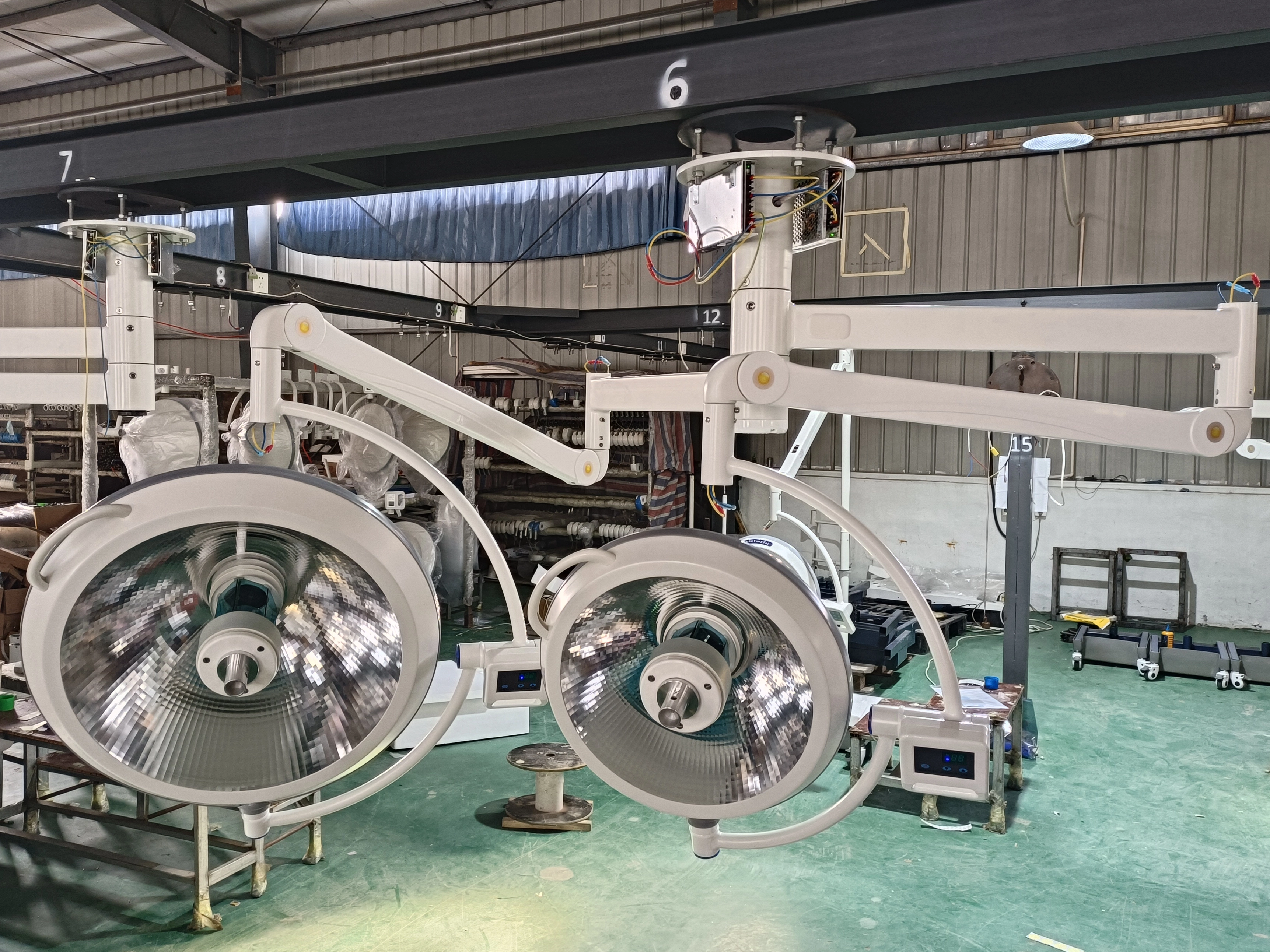

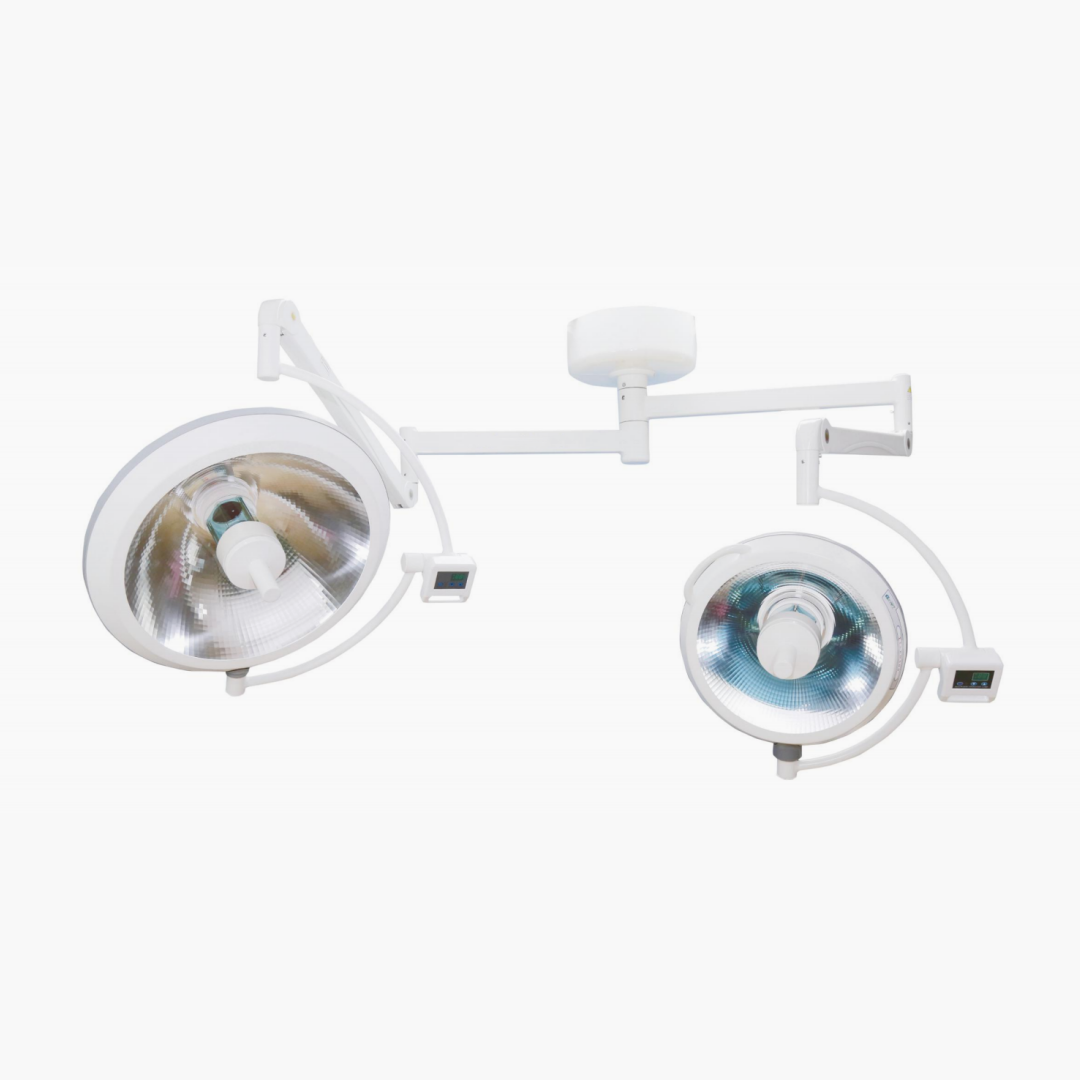

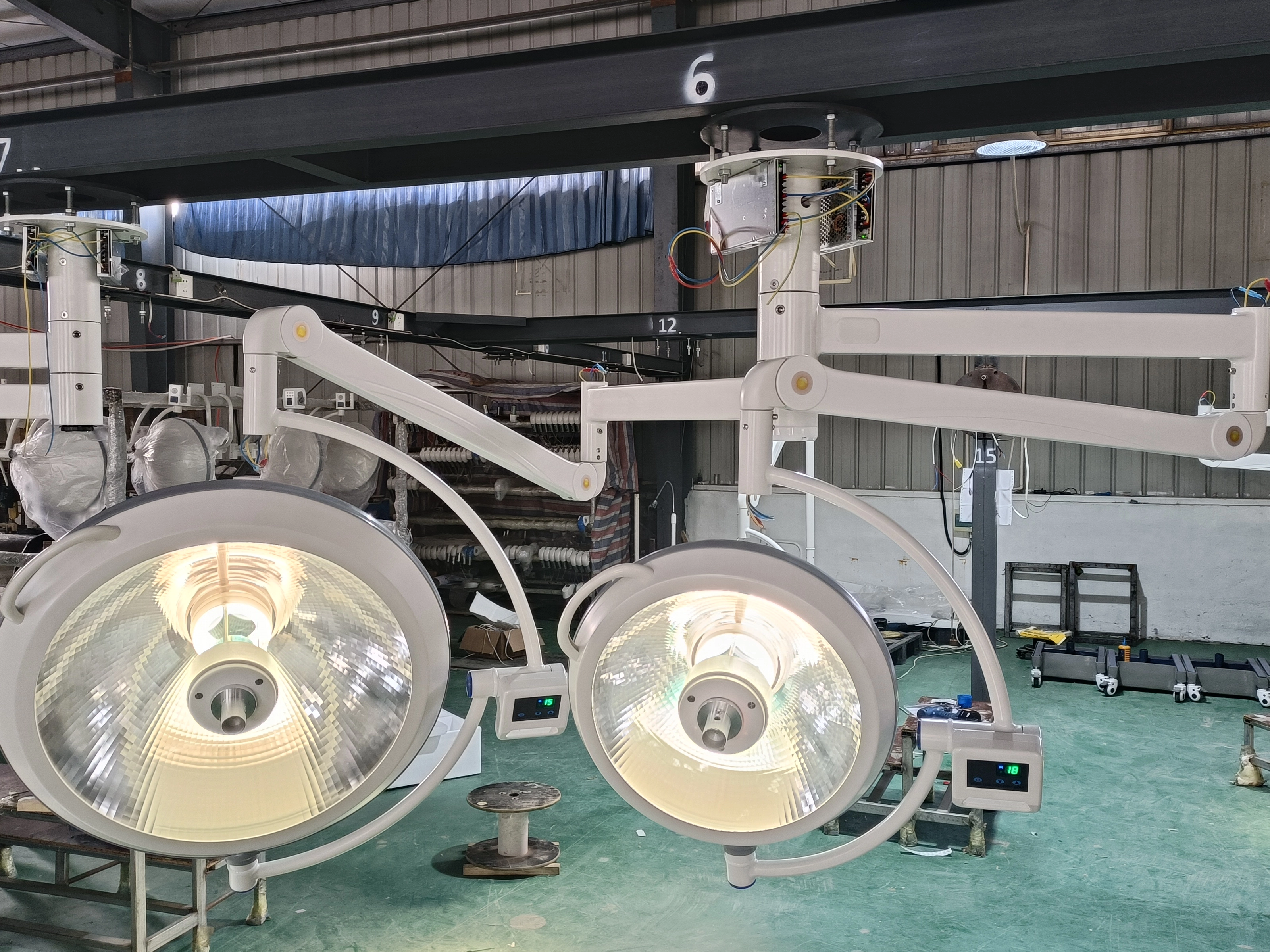

The surgical shadowless lamp can be configured into different combinations such as 700 / 700,500 / 500,500,500,700,70 0,500 and vertical, and can also form a TV camera shadowless lamp system.
model | YTZF 700 / 500 surgical shadowless lamp |
illuminance (Lux) | 40000-160000 |
colour temperature (K) | 3500-6000 |
spot diameter (mm) | 80-200㎜ |
Lighting Depth (mm) | ≥1200㎜ |
brightness control | Twenty-grade gear for continuous dimming |
color rendering index | ≥97% |
irradiance | 6w/m² |
UV auxiliary illumination | 0.3w/m² |
source | AC100-240V 50/60HZ |
interiorinput power (W) | 400VA |
Bulb power (W) | 24V 150W |
Main light and secondary light will switch automatically | 0.1 Seconds |
Six dimensional joints | 360° |
mounting height | 2500-3000 |
★ Enterprise through ISO13485; ISO9001; EU CE; national electrical safety and electromagnetic compatibility dual certification; AAA credit enterprise; high-tech enterprise.
explain:
1、 Surgical shadowless lamp is widely used for lighting needs in various surgical occasions, and it is the ideal lighting equipment for modern operating rooms.
2、 The optical system created by CAD / CAM technology, the lighting depth reaches 1200mm, and the color temperature compensation technology is used to improve the color reduction, which is more suitable for the lighting of large and complex operations such as brain surgery and thoracic surgery.
3、 Microcomputer digital control, with ten-segment brightness selection, and illumination memory function and wide voltage working characteristics, the mains AC180V-250V range of stable work, strong anti-interference ability.
4、The fully enclosed streamlined lamp body design fully meets the needs of the current operating room disinfection and high standard laminar flow.
5、 The PC (bulletproof plastic) injection molding produced by GE company makes the light softer and the safety more reliable.、
6、 The system is exquisite and convenient to replace light bulbs and porcelain seats. The unloading handle coat can be sterilized at high temperature (180°C).
7、 With the backup bulb automatic switching function, when the main light burns out, the secondary light will automatically light up within 0.1 seconds. The handle panel has tests of the main and secondary lights and their circuits.
8、 The soft start device is set to effectively prolong the service life of the bulb, using the imported long life halogen tungsten lamp bubble, the bulb life reaches more than 1000 hours.
9、 The key components are all national standard brand products, stable and reliable operation, flame retardant materials temperature resistance and safety, in line with IEC standards.
10、 It can be equipped with light import balance arm suspension system, six groups of universal joints linkage, light movement, stable and stable, 360-degree comprehensive design, can meet the needs of different heights and angles in the operation.
The surgical shadowless lamp can be configured into different combinations such as 700 / 700,500 / 500,500,500,700,70 0,500 and vertical, and can also form a TV camera shadowless lamp system.
