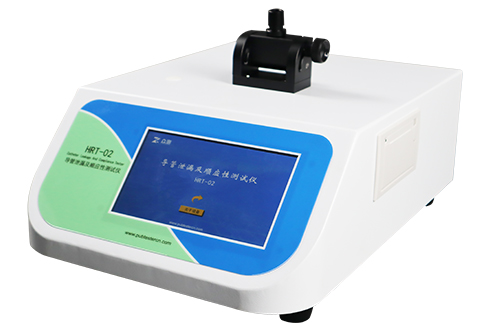

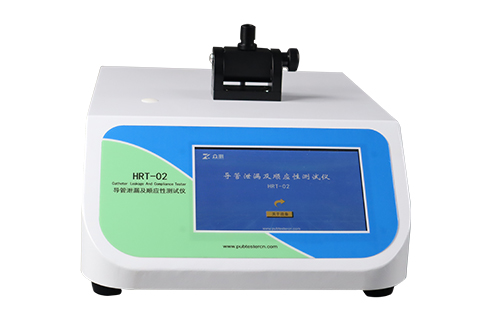

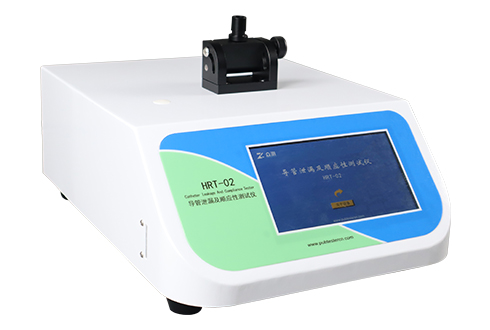

HRT-02 Catheter Leakage and Compliance Tester
Used to determine the hydraulic pressure leak performance of various non-intravascular catheters.
Technical Features
Ø Embedded micro-computer chips, simplified and efficient user interface provide users with comfortable and smooth operating experience
Ø 7-inch color touch screen, display test data and curve in real time
Ø Safety designs such as overvoltage safety protection and power-down memory ensure system stability
Ø High-precision electronic flow controller to achieve precise control of gas flow
Ø Both pressure and time can be preset, input the value directly to enter the test mode
Ø With a powerful data storage function, storing up to 50,000 test records
Ø The result is determined automatically, the test data can be printed
Ø Equipped with standard RS232 interface, which is convenient to PC connection and data transmission
Applications
Basic Applications | Suction Catheter |
Drainage Catheter | |
Anesthesia Catheter | |
Extended Applications | Trachea Cannula |
Abdominal Cavity Catheter | |
Breathing Catheter |
Technical Specifications
Specifications | HRT-02 |
Test Range | 0 ~ 20kPa |
Test Accuracy | ±1% FS |
Flow Rate Range | 0-500ml/min |
Dwell Pressure Time | 0-60min |
Gas Supply Pressure | 0.4~0.7MPa (Not in supply scope) |
Port of Gas Supply | Φ8 mm PU Tubing |
Dimension | Instrument: 310mm(L)×370mm(W)×150mm(H) Hydraulic tank: 215mm(L)×215mm(W)×240mm(H) |
Power Supply | AC 220V 50Hz/ AC 110V 60Hz |
Net Weight | 25Kg |
Standards EN1618, GB/T 15812.1, YY0461
