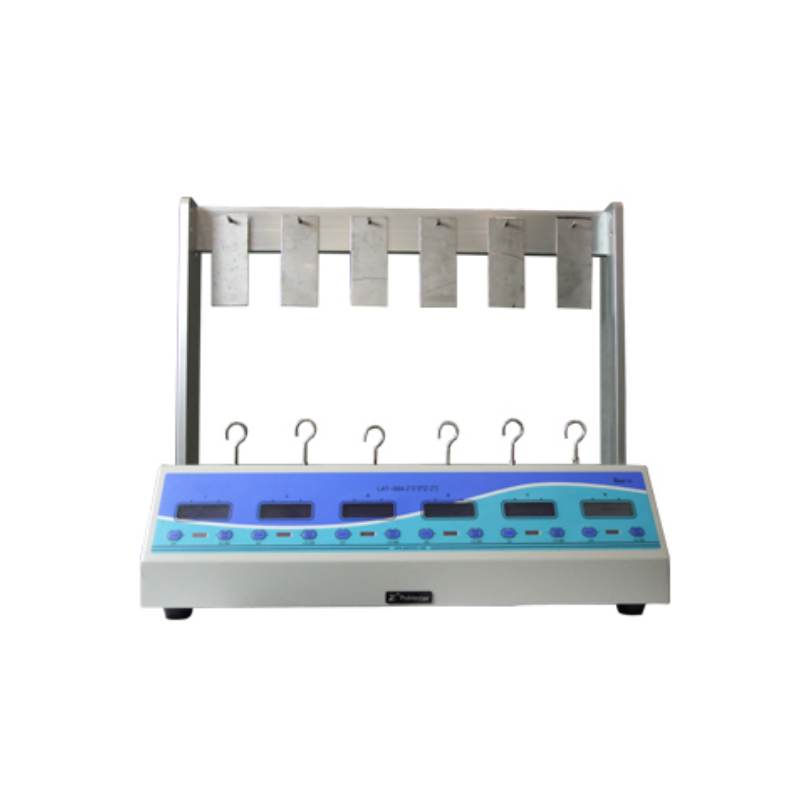

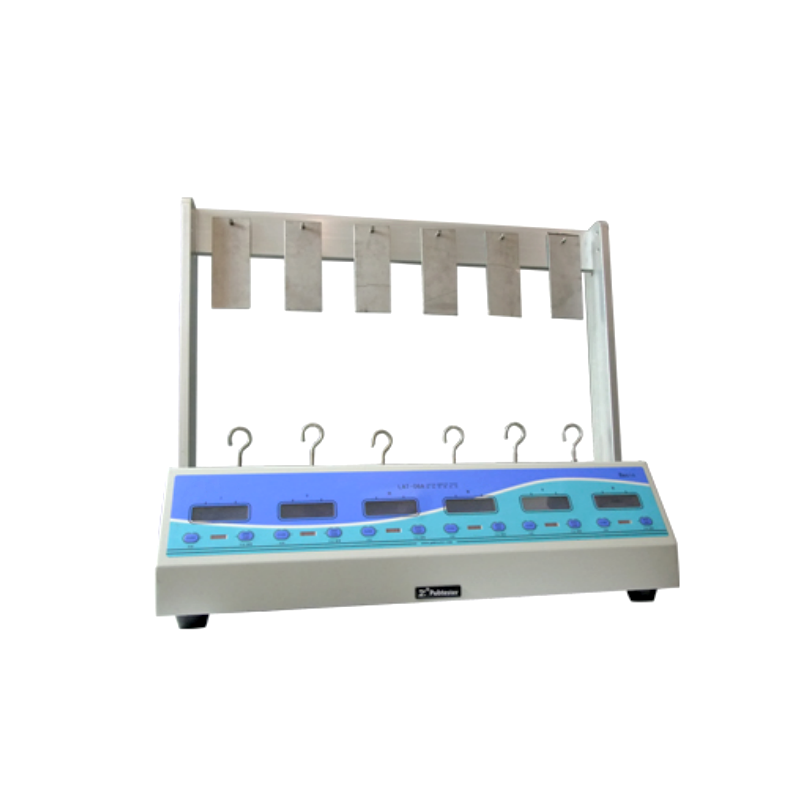

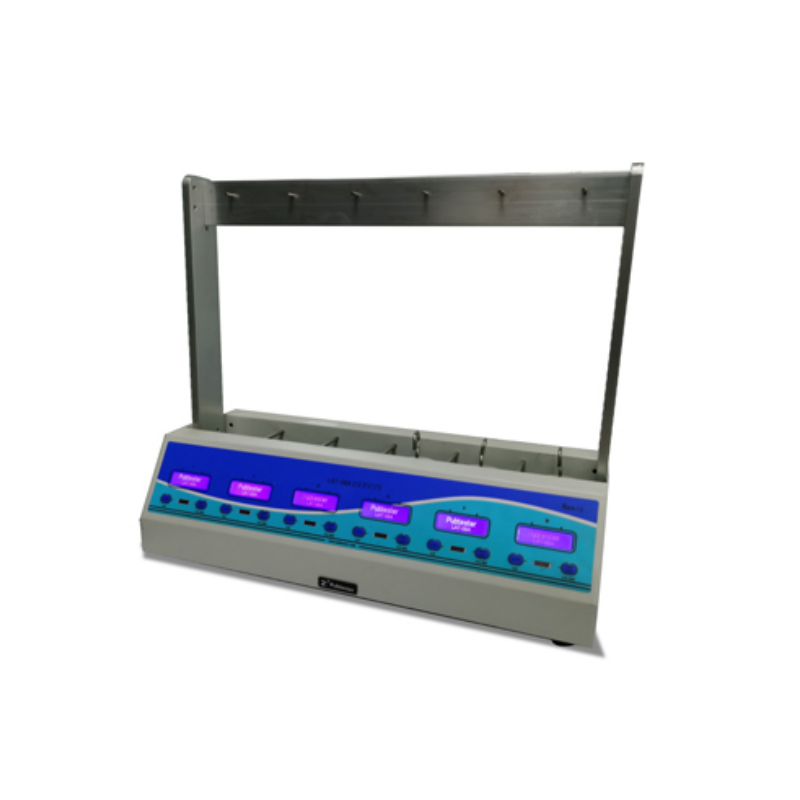

LAT-06A Lasting Adhesive Tester
LAT-06A Lasting Adhesive Tester can be used to test the holding power of pressure-sensitive tapes, medical plasters, pressure-sensitive labels and protective films, etc.
Product Features
-Conform to new standard of GB/T4851-2014
-Six testing stations could test groups of specimens simultaneously
-The weights are demagnetized, which effectively avoids the impact on the test result product
-Standard test plates and weights ensure the accuracy of test data
-Controlled by micro-computer, with PVC operation panel, membrane switches and LCD, which is convenient for customers to operate and view test data
-Auto timing and locking functions provide higher accuracy of test results
Test Principle
The test plate with adhesive specimen is vertically hanged on the stand and its bottom is attached with a standard weight. The lasting adhesive property could be obtained by measuring the displacement of specimen on vertical test plate or the time to failure at such load.
Technical Specifications
Specifications | LAT-06A |
Standard Roller | 2000 g ± 100 g |
Weight | 1000 g ± 5g (with triangle hook) |
Test Plate | 125 mm (L) x 50 mm (W) x 1.1 mm (D) |
Timing Range | 0 ~ 100 h (standard) |
0 ~ 10000 h (optional) | |
Number of Stations | 6 |
Instrument Dimension | 600 mm (L) x 240 mm (W) x 400 mm (H) |
Power Supply | AC220V 50Hz / AC120V 60Hz |
Net Weight | 20 kg |
Standards
GB/T 4851, ASTM D3654, JIS Z0237
Applications
Basic Applications | GB/T 4851 A Method Including various adhesives, e.g. pressure-sensitive tapes, medical patches, adhesive labels and protection films |
Extended Applications | GB/T 4851 B/C Method Adhesive tape |
GB/T 4851 D/E/F Method Fiber reinforced adhesive tape | |
Pharmacopoeia standards Medical plasters |
Configuration
Standard Configuration：Instrument, Weight, Triangle Hook, Test Plate, 2kg Roller
Optional Parts：NIST SRM1810A Fiberboard (B Method), Test Accessories for Horizontal Test: Test Stand for Horizontal Test, 200g Weight (Others are optional), Test Plate
