MDTWJ_0063
MDTZC53188983898
MDTWJ_0063

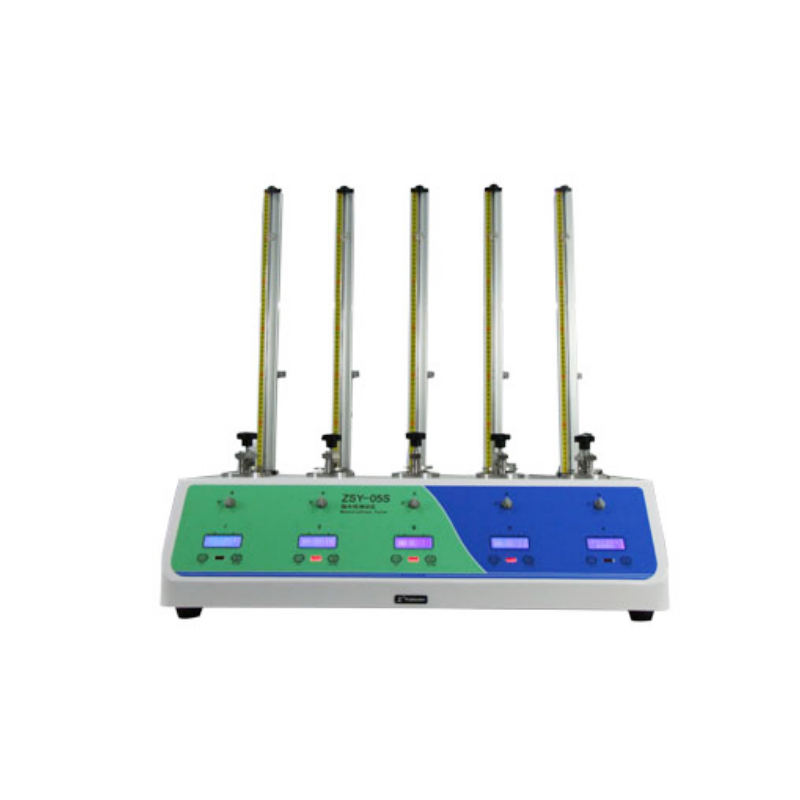

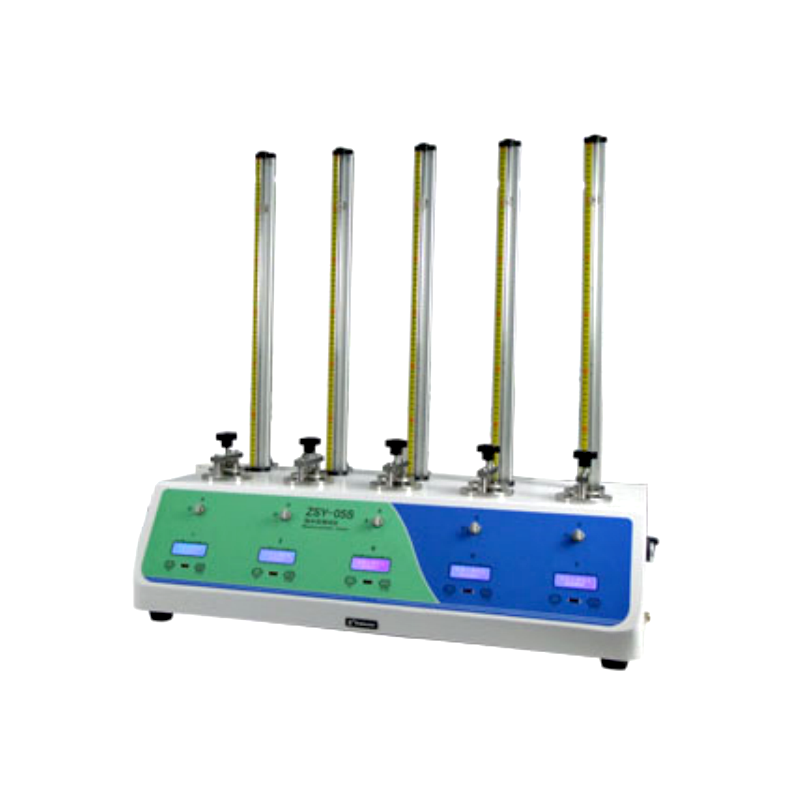

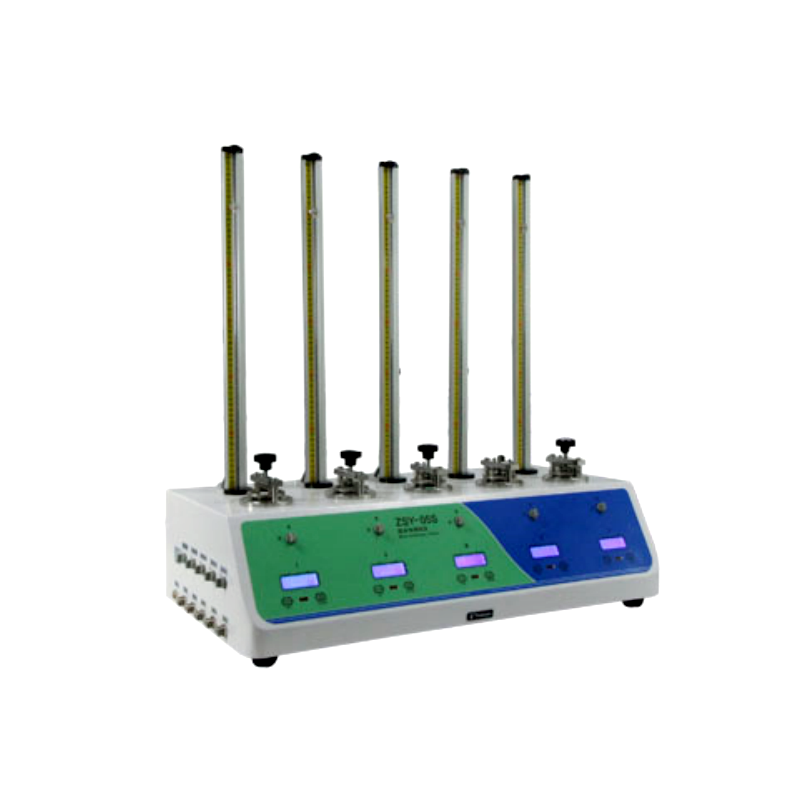

Waterproofness Tester
ZSY-05 Waterproofness Tester is suitable for testing the waterproofness performance of primary wound dressings such as band-aids, bandages, medical tapes, coated paper, non-woven materials or combined materials of any shape, form or specification. The instrument adopts automatic timing and automatic watering, which is the best choice for material manufacturers and inspection agencies.
Technical Features:
-5-station design, can test simultaneously or separately
-Automatic watering, can be watered separately or simultaneously
-500mm overflow to ensure the accuracy of the water level
-High-precision sampling chip to effectively ensure test accuracy and real-time performance
-Safety design such as over-voltage safety protection and power-down memory ensure the stability of the system
-Indicator light alert
-Microcomputer controlled automatic water filling and pressurization
Applications
Basic Application | Extended Application |
Non-Woven material | Any shape and state band-aid, bandage, medical adhesive, non-woven and composite materials |
Bandage |
Technical Specifications
Specifications | ZSY-05S |
Hydrostatic Pressure | 0-600mm |
Control Valve | Electronic Valve |
Pressure Withstanding Time | 0~999 |
Stations | 5-station independent |
Drainage Way | Unified |
Timer | 5pcs |
Overflow Port Switch | 5pcs independent |
Fixture | 5pcs |
Environment Temperature | 15℃-50℃ |
Humidity | Max to 80%. No water condensed |
Instrument Dimension | 500mm(L)* 200mm(W)* 750mm(H) |
Net weight | 5kg |
Power Supply | AC 220V 50Hz |
Standards
EN 13726-3, YY0471.3
